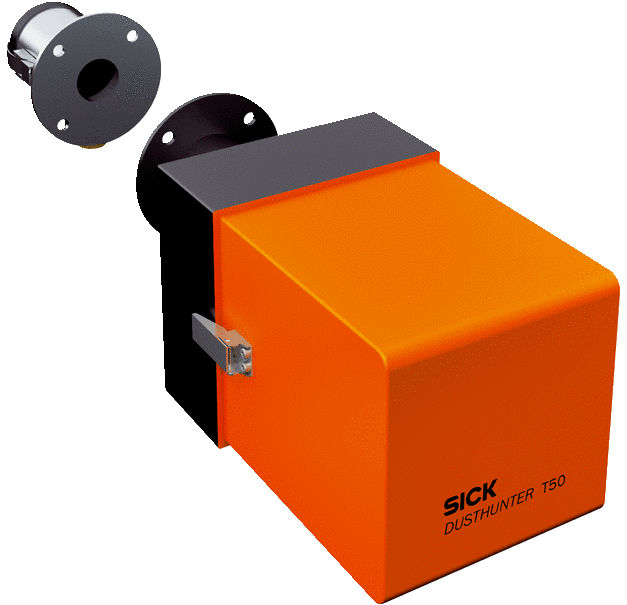

DUSTHUNTER T50 Transmittance Dust Measuring Device
Brand: Sick AGThe DUSTHUNTER T50 is an economic measuring device for dust at medium to high concentrations in gases above the dew point.
Transmittance is the basic measuring value.
Opacity and extinction can be calculated and displayed as well as the dust concentration after gravimetric calibration.
Features- Easy installation, commissioning, and operation
- Measurement not dependent on gas velocity, humidity, or particle load
- Self-monitoring for low maintenance
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP54
- IP66
Measuring Range
- Dust Concentration: 0 to 200 mg/m³ / 0 to 10,000 mg/m³
- Extinction: 0 to 0.3 / 0 to 1
- Relative Opacity: 0 to 50 % / 0 to 100 %
- Opacity: 0 to 50 % / 0 to 100 %
- Transmittance: 100 to 50 % / 100 to 0 %
Response Time
- 1 to 600 s
Accuracy
- ± 2 %
Process Temperature
- -40° to 600° C
Process Pressure
- -50 to 30 hPa
Process Gas Humidity
- Non-Condensing
Duct Diameter
- 4 to 8 m
- 2 to 5 m
- 0.5 to 2.5 m
Ambient Temperature
- -40° to 60° C
Power Supply
- 90-250 Vac, 47-63 Hz
- 24 Vdc
Communication
- PROFIBUS DP
- Modbus
- Ethernet
Gas Flow Rate
- ≤ 20 m³/h
- Emission Monitoring in Heating Systems
- Monitoring of Dust Concentrations Upstream of Filter Systems
- Dust Concentration Measurements in Cement Plants
