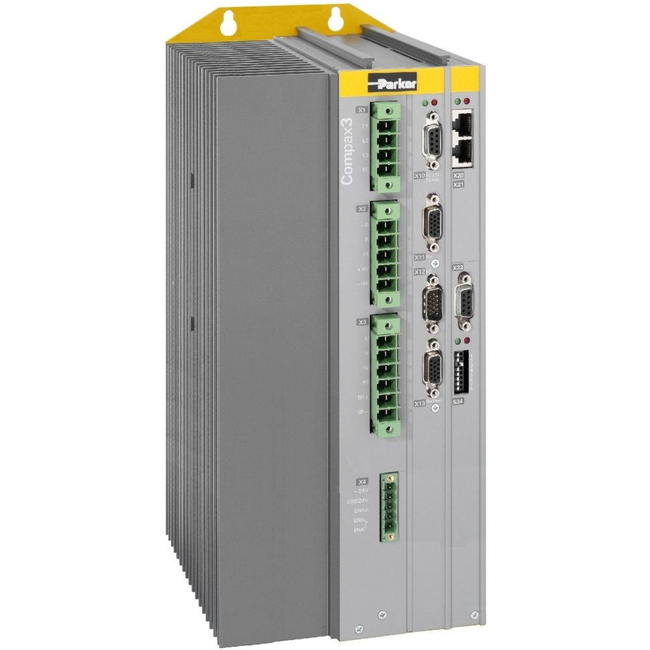

Compax3S Single-Axis Servo Drive/Controller : 30A / 3*400-480Vac (25kVA output)

Compax3S Single-Axis Servo Drive/Controller : 30A / 3*400-480 Vac (25 kVA Output)

Brand: Parker Hannifin
Add Product to My Catalog

C3S300V4 stand-alone servo drives have a power rating of 25kVA and feature scalable technology functions - from intelligent IEC 61131 drives with electronic CAM and PLCOpen function modules, down to basic Analog torque/velocity/position control.

Compax3 is Parker's global servo drive platform - offering a range of high performance single and multi-axis servo drive modules, as well as hydraulic controllers.

The 'C3S' series of low/medium power stand-alone single-axis servo drives and servo drive/controllers offer output power ratings from 1 to 25kVA, with input power supply options of 1/3*230VAC to 3*480VAC.

Based on scalable technology functions, Compax3 drives can solve a wide range of application types - from basic analogue torque/velocity and step/direction control up to intelligent drives with advanced electronic CAM control and PLCopen function modules, programmable in accordance with IEC 61131-3 using the CoDeSys development environment.
Features
  • Drives all motor types - synchronous-, asynchronous-, linear- and torque-motor technologies
  • Support most feedback devices including resolver, rotary and linear incremental encoders, single/multi-turn SineCosine absolute encoders (EnDat & Hiperface interfaces) and analogue/digital hall sensors.
  • Standard IEC61131-3 programming
  • Application software integrated
  • Drive based safety

Specifications

Brand

Approvals & Certifications

  • CE (EMC & LVD) UL Recognised, cUL Recognised, RoHS Compliance

Communication Interface

  • RS-232, RS-485, CANopen, DeviceNet, PROFIBUS, PROFINET, PowerLink, Ethernet TCP/IP, EtherCAT

Continuous Output Current Rating

  • 30 A

Drive Format

  • Single Axis Technology

Input Supply Voltage

  • 3*400/480 Vac

Modes of Control

  • Programmable Control - IEC 61131 Electronic Gearing Electronic CAMPosition Control (External Command) / Velocity Control (External Command) / Torque Control (External Command) Analog Command Input Step / Direction Command Input

Operating Temperature (°C)

  • 0° to 45° C

Operating Temperature (°F)

  • 32° to 113° F

Product Type

  • Servo Drive

Series

  • Compax3

  • Packaging machines
  • Material forming machines
  • Printing machines
  • Handling machines
