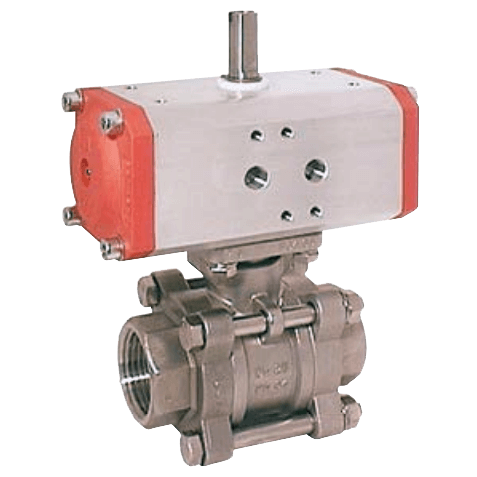

KUP-ZA 2-Way Stainless Steel Ball Valve with Pneuamtic Actuator
Brand: KOBOLD Instruments, IncDesign
Three-piece threaded joint body design with full cylindrical bore.
- Operation: Pneumatic Single- or Double- Acting
- Pilot Pressure: 6 bar (87.02 psi, 600 kPa) to 8 bar (116 psi, 800 kPa)
- Pilot Media: Filtered Air
- Mounting Position: Any
- Options: 3/2 or 5/2-Way Solenoid Valve Electric/Mechanic Limit Switches
Technical Details Flow Fitting
- Connections: G 1/2" to G 4" Female Thread, Welded Connection DN 15 to DN 100
- Temperature Range: -30° to 110° C (-4° to 230° F)
- Nominal Pressure: PN 16 (232.1 psi, 1,600 kPa, 16 bar)
Materials
- Body: Stainless Steel 1.4408
- Ball: Stainless Steel 1.4408
- Ball Gaskets: PTFE Glass-Fibre-Reinforced
- Spindle Gasket: PTFE/FKM
Specifications
Brand
Actuator Type
- Pneumatic
Ambient Temperature Range
- Actuator: -20° to 85° C (-4° to 185° F)
Ball Gasket Material
- PTFE Glass-Fiber Reinforced
Ball Material
- 316 Stainless Steel
Bearing Material
- Smooth Plastic
BSP Connection
- G 1" Female
- G 1/2" to 4" Female
- G 1-1/2" Female
- G 1-1/4" Female
- G 2" Female
- G 2-1/2" Female
- G 3" Female
- G 3/4" Female
- G 4" Female
Cap Material
- Plastic, Fibre-Reinforced or Aluminum
Direct Mount
- Yes
Enclosure, Body Material
- 316 Stainless Steel
- Actuator: Aluminum Alloy, Anodised
Gasket Material
- Actuator: NBR
Mounting Position
- Any Orientation
Nominal Pressure
- psi: 232.1 (bar: 16, kPa: 1,600)
Nut & Bolt Material
- 316 Stainless Steel
Operation
- Pneumatic Double-Acting
- Pneumatic Single-Acting
Options
- 3/2- or 5/2-Way Solenoid Valve Electric/Mechanic Limit Switches
Pilot Media
- Filtered Air, to PNEUROP / ISO -Class 4 Standard at Least
Pilot Pressure
- Actuator: 2 bar (29.01 psi, 200 kPa) to 10 bar (145 psi, 1,000 kPa)
- psi: 87.02 to 116 (bar: 6 to 8, kPa: 600 to 800)
Piston Material
- Aluminum
- Fibre-Reinforced
- Special Plastic
Port
- Full
Rotation
- 90° (Adjustable ± 6°)
Seat / Seal Material
- PTFE Glass-Fiber Reinforced
Spindle Gasket Material
- FKM
- PTFE
Temperature Range
- -30° to 110° C (-22° to 230° F)
Torque
- Actuator Moment Range: 5 to 300 Nm (44.3 to 2,655.2 in/lb) Depending on Size Used
Valve Type
- Automated
Welded Connection
- DN 100 Weld End
- DN 15 to 100 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
- DN 65 Weld End
- DN 80 Weld End
