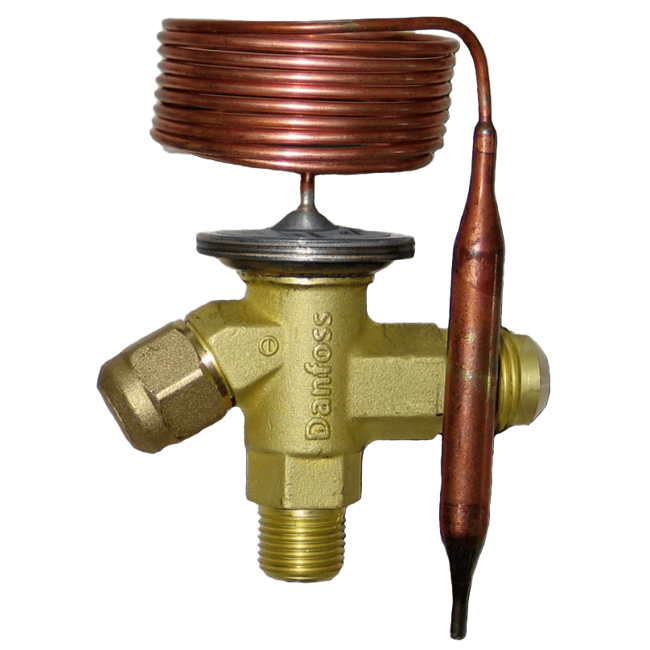

TXI 2 Injection Valve
Brand: DanfossThe TXI2 is an injection valve for desuperheating in 2-stage refrigeration systems operating on R22/R407C and other similar refrigerants where the hot gas temperature and the intermediate pressure are the controlling variables.
1 - 4 of 4 Part Numbers
068-3249
- Connection - 3/8" x 1/2" SAE Flare
- Temperature Range - 100° to 130° C (212° to 266° F)
- Pressure Range - 0 to 2 bar
068-3258
- Connection - 3/8" x 1/2" SAE Flare
- Temperature Range - 100° to 130° C (212° to 266° F)
- Pressure Range - 1 to 5 bar
068-3343
- Connection - 3/8" SAE Flare x 1/2" Solder
- Temperature Range - 100° to 130° C (212° to 266° F)
- Pressure Range - 1 to 5 bar
068-3360
- Connection - 3/8" x 1/2" SAE Flare
- Temperature Range - 80° to 110° C (176° to 230° F)
- Pressure Range - 1 to 5 bar
1 - 4 of 4 Part Numbers
Specifications
Brand
Applications
- Refrigeration Equipment
Capillary Length
- Capillary Tube: 5 ft (1.5 m)
Operating Pressure
- psi: 493.1 (kPa: 3,400, bar: 34)
Pressure Drop
- psi: 8.7 to 243.7 (kPa: 60 to 1680, bar: 0.6 to 16.8)
Pressure Range
- psi: 0 to 72.52 (kPa: 0 to 500, bar: 0 to 5)
SAE Connection
- 1/2" SAE Male Flare
- 3/8" SAE Male Flare
Temperature Range
- 80° to 130° C (176° to 266° F)
In principle there are two different ways in which to setup 2-stage refrigeration systems as far as temperature signal to the liquid injection valve is concerned
