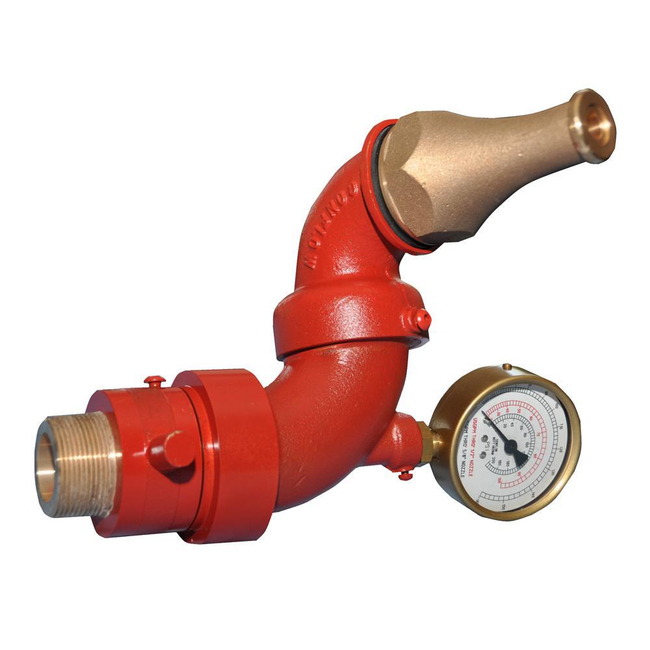

Pre Setting Bend - Code 14
Brand: Parker HannifinParker Conflow’s Code 14 Pre-setting bend is a compact and user friendly setting and checking tool for underground fire hydrants (Code 12) in mining, quarrying and tunnelling applications.
The instantaneous inlet coupling is clipped into the hydrant outlet and the delivery nozzle is swivelled to point away to a safe area.
When the hydrant is then opened the flow and pressure of the water emitting from the nozzle is indicated on the gauge.
It can be sold alongside Code 12 as a kit to ensure the fire hydrant works effectively, checking pressure and flow.
It operates to a maximum working pressure of 105 bar. It is supplied in 1/2" or 5/8" nozzles (3/4" on special request).
The hydrant can be adjusted until the gauge indicates the correct flow and pressure for the nozzle size required.
Features- Easy to use.
- Offers ability to check fire hydrants without need for full fire drill, saving time and reducing risk of damage.
- A compact kit that is easy to fit and operate.
- An essential part of a mine’s fire safety planning to help ensure an appropriate response in case of fire.
- It helps a mine or transport authority to comply with regulations on fire safety and preparedness.
Specifications
Brand
Applications
- Fire Suppression
Markets
- Mining
Maximum Working Pressure (bar)
- 105
Weight (kg)
- 4.25
- For Setting Up and Checking the Deliveries of Underground Fire Hydrants.
