Accuron 7100

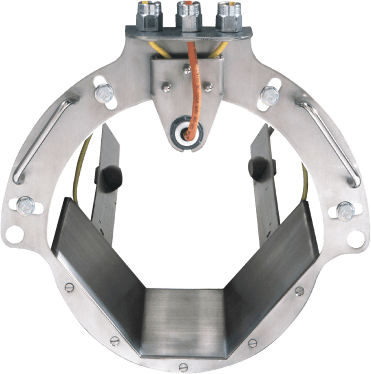

Brand: Eastech Flow Controls, IncEastech design engineers have successfully combined three separate products; a trapezoidal flume, an ultrasonic level sensor, and a mounting bracket into a fully integrated sewer flow measurement system meeting the design standards of the U.S.
Bureau of Reclamation. Engineering and plant personnel may now specify an extremely reliable and cost efficient system to monitor and measure flow in a single assembly.
The Accuron Cartridge Meter (pat. pend.) shifts the responsibility of installed accuracy from the field to the factory.
The added labor and expense of field programming, precise sensor alignment and costly flume installation is totally eliminated.
Features- Fully Operational in 30 minutes
- Immediate 40% cost savings
- Guaranteed installed accuracy
- Maintenance free
Specifications
Environmental Rating
- Submersible NEMA 4, 4X
Sensor Housing
- Teflon (Resin Filled)
Temperature
- 40° to 158° F (-40° to 70° C)
Accuracy
- ± 0.02" or ± 0.05 % of target distance
Standard Cable Length
- 30 ft
Warranty
- 18 months
Relay Alarms
- 3 SPDT (plug-in) 2.5 Amps
RS-232 Serial Port
- 1200-38400 Baud, Modbus RTU
Network Protocols
- Modbus, Profibus or DeviceNet
DC Power Out
- 12 Vdc. 100 mA Max.
Backlit LCD
- 4 Line x 20 character (contrast control)
Wattage
- 12
Voltage
- 80/240 Vac, 50/60 Hz / 12-28 Vdc @ 150 mA.
