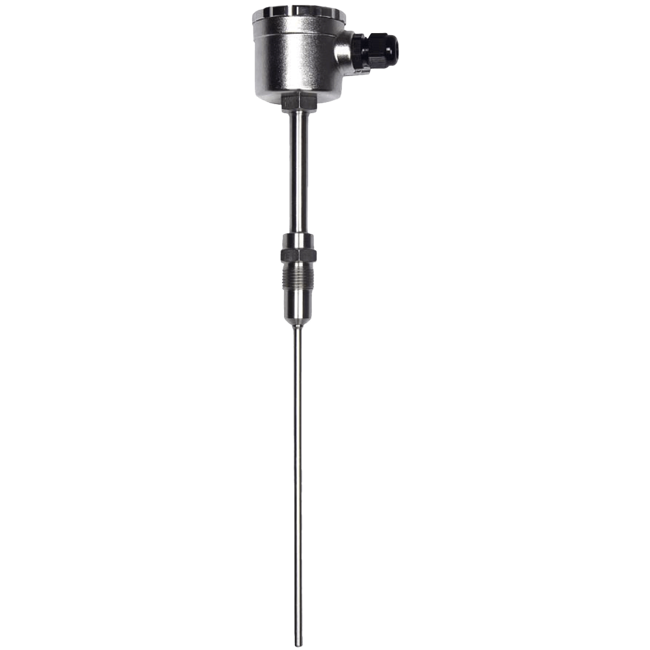

LTS Resistive Temperature Sensor
Brand: KOBOLD Instruments, Inc
The change in resistance of platinum in relation to the temperature to be measured is used for temperature measurement with the KOBOLD Resistive Temperature Sensors LTS.
The devices are connected electrically with 2- or 3-wire technology, depending on the input of the evaluation device and the line length. Alternatively, the temperature sensor can be connected to a 4-20 mA current input (2-wire current loop) through the built-in 2-wire transmitter.
The temperature sensors with a connection that is cavity free (...T, ...M) are fitted with a food-compatible metallic sealing system, that forms a hygienic measuring point in conjunction with the associated weld-in sleeve LZE.
The temperature sensors with neck well are suited for measuring permanently high temperatures (up to 250° C).
Specifications
Brand
Accuracy
- ± 0.2 % of Reading ± 0.2° C
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
- -25° to 70° C (-13° to 158° F) - for LTS-K (Compact Version)
- -40° to 85° C (-40° to 185° F) - for LTS-A (with Connection Box)
Applications
- Food Applications
- Temperature Measurement for Food Applications
- Temperature Measurement for Reduced Mounting Space
Approvals & Certifications
- IEC 751
BSP Connection
- G 1/2"
Electrical Connectors
- M12 x 1 Plug
- M16 x 1.5 - Cable Connection
- Screw Terminal
Environmental Protection
- IP67
Humidity
- 0 to 98 % RH, Non-Condensing
Input
- 1 mA
Length
- 0.787" (20 mm) - Sensor Length
- 1,000 mm, Max.
- 1.97" (50 mm) - Sensor Length
- 100 mm - Sensor Length
- 150 mm - Sensor Length
- 250 mm - Sensor Length
Materials of Construction
- 316 Stainless Steel
Maximum System Pressure
- psi: 145 (bar: 10, kPa: 1,000)
Output
- 4-20 mA
Sensor / Probe Connection
- 2-Wire
Sensor / Probe Type
- Pt100
Supply Voltage
- 10-30 Vdc
- 8-32 Vdc
Temperature Range
- -50° to 250° C (-58° to 482° F)
