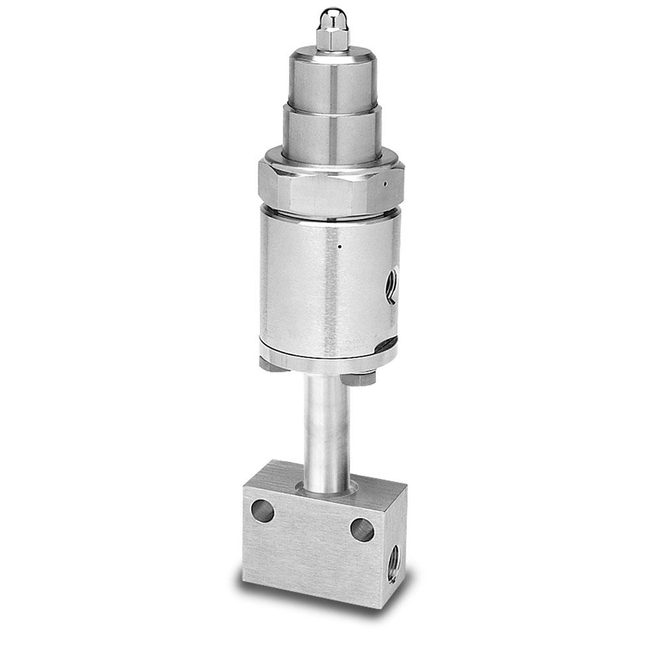

Steam Heated, Vaporizing Pressure Regulator (up to 3,500 psig) - AVR3 Series
Brand: Parker HannifinThe AVR3 Series Steam Heated Pressure Regulator is designed to heat and/or vaporize process fluid before entering a downstream analyzer system. It is highly compact and features a field-serviceable heat transfer element, which minimizes downtime.
The Parker AVR3 Series is a steam heated pressure regulator that is designed to heat and/or vaporize a gas or liquid sample before entering a downstream analyzer system.
Its unique design allows the operator to disassemble the regulator and heat transfer components for complete cleaning and repair of the unit, thus reducing replacement costs and downtime.
The regulator is highly compact, making it ideal for use in scenarios where space is limited, such as heated boxes and enclosures.
The AVR3’s body is available in 316L Stainless Steel or Hastelloy C-22®, which allows for compatibility with a wide range of inert and hazardous process fluids.
Seats are available in PCTFE, PEEK™ or Vespel®, affording the regulator with higher resistance to corrosion, electropolishing, and welding than cast and forged metals.
These materials, combined with the convoluted Hastelloy C-22® diaphragm and Inconel® poppet, provide the AVR3 Series with maximum cycle at inlet pressures up to 3,500 psig and exceptional outlet pressure stability with changes in flow.
The AVR3 Series features a unique compression member, which loads the seal to the body without requiring a threaded nozzle or additional seals.
The internally threadless design reduces particle entrapment and minimizes the risk of downstream process contamination.
All AVR3 Series steam heated pressure regulators are cleaned for O2 service to ensure performance and reliability in high-purity applications where cleanliness is critical.
For an electrically heated version of this pressure regulator, refer to the AVR4 Series.
Features- Steam heated transfer element is field-replaceable
- Unique compression member loads seal to body without requiring a threaded nozzle
- Available with a variety of seat materials for media compatibility
- Internally springless minimizes particle generation and gas entrapment
- Fully functional from vacuum to 3,500 psig
- Internal leak rate: bubble tight
- External leak rate: bubble tight
- Low internal volume (4.6 cc) reduces purge times
- Integral diaphragm stop provides additional measure of safety
- Operating temperatures up to 500°F (260°C)
- PEEK™ Heater Seal, O-ring back-up FKM
Specifications
Brand
Body Material
- 316L Stainless Steel Standard, Monel, Hastelloy C-22
Burst Pressure
- 10,500 psig (724 barg)
Cap Material
- 303 Stainless Steel
Compression Member Material
- Inconel 625
Diaphragm Material
- Hastelloy C-22
External Leak Rate
- Bubble Tight
Flow Capacity (Cv)
- 0.06 Nominal
Heater Seal Material
- PEEK
Internal Leak Rate
- Bubble Tight
Internal Volume (cc)
- 0.57 (High Pressure Inlet) 4.6 (Overall)
Maximum Inlet Pressure (psi)
- 3,500 psig (241 barg),250 psig (17.2 barg) for 10 psig Range
Maximum Steam Pressure (bar)
- 41 bar
Maximum Steam Pressure (psi)
- 600 psi
Maximum Steam Temperature (°C)
- 260° C
Maximum Steam Temperature (°F)
- 500° F
Maximum Working Temperature (°C)
- 66° C PCTFE, 135° C PEEK, 260° C Vespel
Maximum Working Temperature (°F)
- 150° F PCTFE, 275° F PEEK, 500° F Vespel
Nut Material
- 316L Stainless Steel
O-Ring Material
- FKM
Outlet Pressure
- 0-10 psig (0.7 barg), 1-30 psig (2 barg), 2-60 psig (4 barg), 3-100 psig (7 barg), 10-250 psig (17 barg), 20-500 psig (35 barg)
Poppet Material
- Hastelloy C-276
Poppet Spring Material
- Inconel X-750
Proof Pressure
- 5,250 psig (362 barg)
Seat Options
- PCTFE (Standard), PEEK, Vespel
Seat Retainer Material
- 316L Stainless Steel Standard, Hastelloy C-22
Weight (kg)
- 2
Weight (Lbs)
- 8
- Corrosive and Specialty Gases
- Gas Sample Preparation
- Gas Cabinets
- Valve Manifold Boxes (VMB)
- Upstream Process Lines
- Markets:
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
