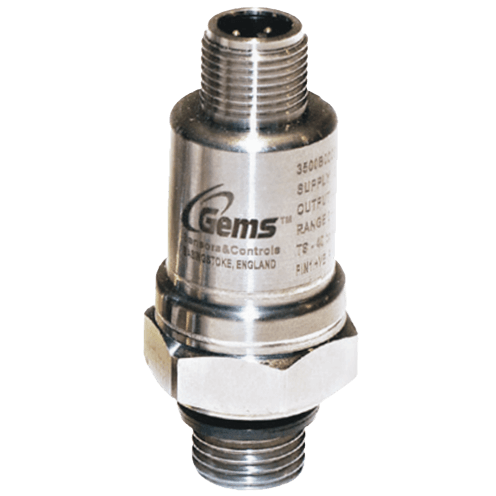

3500 Series Low-Pressure OEM Pressure Transducer
Brand: Gems Sensors, Inc
For OEM's that need consistent high levels of performance, reliability and stability the 3500 Series units offer a small package size with all stainless steel wetted parts at an unbeatable price performance ratio.
A wide choice of electrical outputs as well as both electrical and pressure connections means the unit is suitable for most applications without modification.
The compact construction of the 3500 Series makes it ideal for installation where space is at a premium.
Features- 5 to 600 psi pressure ranges (0.35 to 40 bar)
- Choice of outputs, electrical connections and pressure ports
- Operating temperature up to 257° F (125° C)
Specifications
Brand
Accuracy
- 0.25 % of Full Scale
Approvals & Certifications
- CE
- Emission & Immunity: EN 61326-1: 2006 & EN 61326-2-3: 2006
- PED
- RoHS
Approvals & Certifications
- Vibration: BSEN 60068-2-6 (FC), BSEN 60068-2-64 (FH) & Shock: BSEN 60068-2-27 (Ea)
BSP Connection
- G 1/4" Male
- G 1/8"-27 Male
Burst Pressure
- 3 x Full Scale
Compensated Temperature
- -20° to 100° C (-4° to 212° F)
Current
- Source & Sinks: 8 mA
Electrical Connectors
- Deutsch DT04 4-Pin
- DIN 43650-A
- Industrial DIN 9.4 mm & Industrial DIN (Alternative Pinout)
- M12 x 1P
- Packard Metri Pack
Electrical Contacts
- Normally Closed
- Normally Open
Environmental Protection
- IP67
Measuring Error
- Thermal Error: Max.
Metric Connection
- M12 x 1.5 Male
NPT Connection
- 1/4"-18 NPT Male
- 1/8"-27 Male NPT
- 1/8"-27 Male NPTF
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.5 - 4.5 V
- 0.5 - 4.5 V Ratiometric
- 0-10 V
- 0-5 V
- 1-10 V
- 1-5 V
- 1-6 V
- 4-20 mA
Pressure Cycles
- Fatigue Life: more than 100 Million Cycles
Pressure Range
- bar: 0 to 40
- kPa: 0 to 4,000
- psi: 0 to 600
Pressure Type
- Absolute
- Compound Pressure
- Gauge
Proof Pressure
- 2 x Full Scale
SAE Connection
- 7/16"-20 SAE Male
Supply Voltage
- 10-30 Vdc
- 2 V Above Full Scale to 30 Vdc
- 24 Vdc, Max.
- 5 Vdc ± 10 %
Thermal Drift
- < 0.2 % of Full Scale Per Year
Tolerance
- Zero & Span Tolerance: ± 0.5 % of Span, Max.
Torque
- 15 to 35 Nm (133 to 310 in/lb)
Wetted Materials
- 316L Stainless Steel
