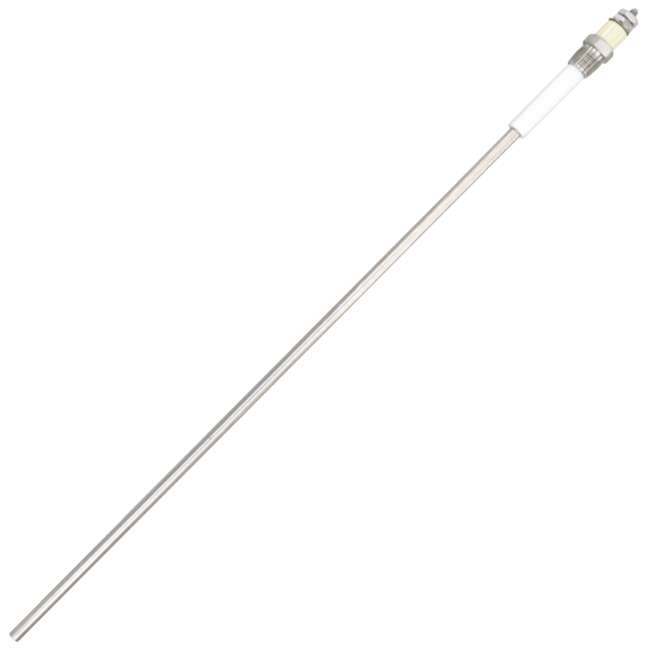

Warrick Series 3L Electrode Fitting
Brand: Gems Sensors, IncSeries 3L Miniature Fittings have a 1/8" NPT bushing and are rated for up to psi: 150 (kPa: 1,000, bar: 10).
Features- Compact
- One-Piece Probe/Body Construction
- Quick Install & Connect
- Order Sized to Your Spec
Specifications
Brand
Applications
- Single Point Level
- Small Vessels
- Water Level
Approvals & Certifications
- UL: File MP2489
Diameter
- Probe Diameter: 3/16" (4.76 mm)
Enclosure, Body Material
- 316 Stainless Steel
Length
- Probe: 12" (304.8 mm) - max.
Materials of Construction
- Insulation: Teflon
NPT Connection
- 1/8" NPT Male
Pressure Range
- psig: 0 to 150 (kPa: 0 to 1,000, bar: 0 to 10)
Sensor / Probe Material
- 316 Stainless Steel
Temperature Range
- 0° to 185° C (32° to 365° F)
- Single Point Level
- Small Vessels
- Water Level
