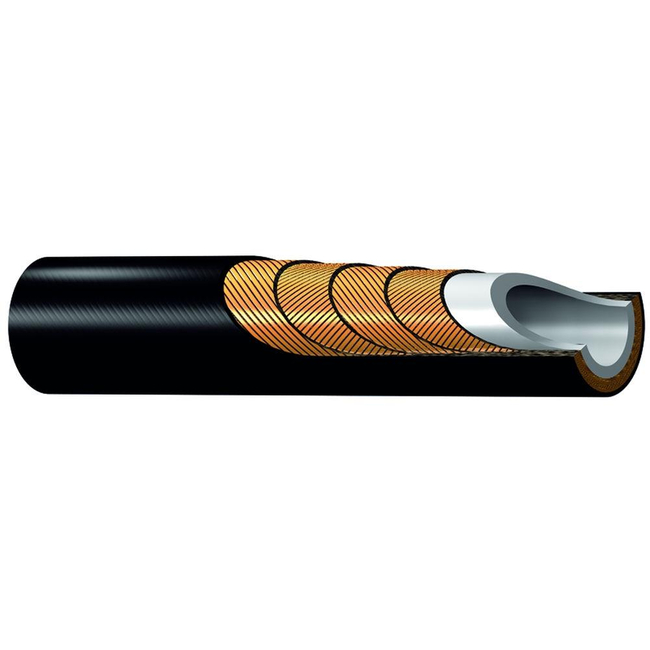

High Pressure Wire Hose - 2440N
Brand: Parker HannifinParker Polyflex 2440N Hoses for the Oil & Gas industry are designed for safety, versatility and efficiency, matching the tough requirements and expectations of the market place.
Easy winching from drums reduces deployment or replacement times significantly.
Long lengths allow operation in significant water depth and the durability of the hose assures maximized service life under extreme conditions.
Features- Smooth bore fore low pressure drop
- Offshore design factor: 4:1
- Meets or exceeds performance requirements of ISO 13628-5
Specifications
Brand
Collapse Pressure (Mpa)
- 24,7, 32,2, 19, 10,5, 6, 6,6
Collapse Pressure (psi)
- 3582, 4670, 2755, 1520, 870, 957
Design Factor
- 4, 3,6, -
Hose I.D. (DN)
- 6 - 25
Hose I.D. (inch)
- 1/4", 3/8", 1/2", 3/4", 1, 3
Hose I.D. (mm)
- 6,4 - 25,4
Hose I.D. (Size)
- -4, -6, -8, -12, -16
Hose Inner Tube Material
- Polyamid 11
Hose O.D. (inch)
- 0,52, 0,77, 0,89, 1,189, 1,46, 4,8
Hose O.D. (mm)
- 13,1, 19,5, 22,7, 13,2, 37,2, 122
Maximum Length (feet)
- 9840, 16400, 8200, 13100, 983
Maximum Length (m)
- 3000, 5000, 2500, 4000, 300
Maximum Working Pressure (bar)
- 690 - 862
Maximum Working Pressure (Mpa)
- 69 - 86
Maximum Working Pressure (psi)
- 12500, 11750, 10000, 8120, 10000
Maximum Working Temperature (°C)
- +70° C
Maximum Working Temperature (°F)
- +158° F
Minimum Bend Radius (inch)
- 5,9, 7,5, 7,9, 9,8, 11,8, 43,3
Minimum Burst Pressure (MPa)
- 345, 324, 250, 225, 276, 225, 138
Minimum Burst Pressure (psi)
- 50000, 46980, 36250, 32625, 40000, 32625, 20000
Minimum Working Temperature (°C)
- -10° C
Minimum Working Temperature (°F)
- 14° F
Weight (kg/m)
- 0,31, 0,73, 0,94, 1,46, 2, 18,7
Weight (Lbs/Ft)
- 0,21, 0,49, 0,63, 0,98, 1,33, 12,57
- Small OD
- Low volumetric expansion hose
- Long length subsea umbilical hose
- For working pressure up to 86.5 MPa (12.500 psi)
