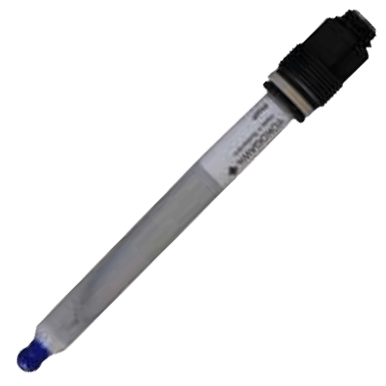

PH4C/PH4CT pH Sensor
Brand: Yokogawa Electric CorporationYokogawa’s line of pH sensors has been strengthened by the inclusion of the polymer electrolyte pH sensor PH4P/PH4PT, HF-resistant pH sensor PH4F/PH4FT, pH sensor for chemical process PH4C/PH4CT, and pH sensor for fermentation PH4FE.
Like the pH sensor series, the ORP sensor series is also offered as a complete lineup with the polymer electrolyte ORP sensor OR4P, ORP sensors for chemical process OR4C in addition to standard Ryton pH/ORP sensors.
Features- Extremely long life span for pH measurement in electrolytic process
- With the pressurized inner solution, a pressure holder is not needed
- The reference electrode is composed of silver ion trap which inhibits the generation of sulfide around the ceramic liquid junction.
Specifications
Cable Length
- 3 to 20 ft (0.91 to 6.09 m)
Cable Material
- Polyvinyl Chloride (PVC) - Cable Jacket Material
Diameter
- 0.47" (12 mm) - Glass Tube
Diaphragm Material
- Ceramic Junction x 1
Electrical Connectors
- Fork Terminal
- M3 Ring Terminal
- M4 Ring Terminal
- Pin Terminal
Enclosure, Body Material
- Glass
Length
- 4.72" (120 mm) - Insertion Length
Measuring Range
- pH: 0 to 14
O-Ring Material
- Ethylene Propylene Diene Rubber (EPDM)
- Perfluoroelastomer - FFKM
Pressure Range
- Measuring Pressure: Atmospheric Pressure to psi: 36.26 (kPa: 250, bar: 2.5)
RTD Type
- Pt1000
Temperature Range
- 0° to 100° C (32° to 212° F)
- -20° to 70° C (-4° to 158° F) - Cable Measuring Temperature
- -30° to 70° C (-22° to 158° F) - Cable Measuring Temperature
Wetted Materials
- 316 Stainless Steel - Adapter
- Heat-Resistant Vinyl Chloride - Adapter
- Polypropylene - Adapter
- Rigid Polyvinyl Chloride (PVC) - Adapter
- Titanium - Adapter
