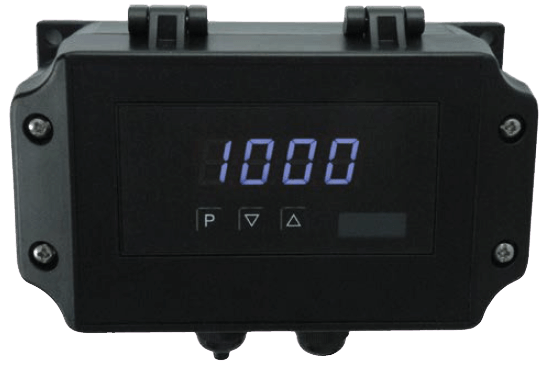

Kobold Digital Indicator, DAG-A

DAG-A Digital Indicator

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Kobold Digital Indicator, DAG-A Kobold Digital Indicator, DAG-A Kobold Digital Indicator, DAG-A
Digital indicating units for measurement of temperature, current and voltage. The measuring input is set at the factory. The dimension symbols can be adapted with interchangeable plates.
Features
  • 4 digits LED (red, green, orange or blue)
  • Input: temperature, current, voltage
  • Up to 8 additional adjustable setpoints
  • Tara, zero-point tranquilizing

Specifications

Brand

Approvals & Certifications

  • UL 94 HB

Cold Junction Reference

  • Thermistor

Display

  • 4-Digit, 7-Segment, 14(10) mm High, Red, Green, Blue or Orange LED
  • Display Time: 0.1 to 10 seconds
  • Horizontal bar (Up/Down) for Overflow/Underflow

Electrical Connectors

  • Plug Terminals Cable Cross-Section up to 2.5 mm²

Enclosure, Body Material

  • ASA 757 G Luran S - Field Housing
  • Polycarbonate, Black

Environmental Protection

  • IP00 - Rear
  • IP65 - Front

Gasket Material

  • EPDM
  • PU, -40° to 100° C (-40° to 212° F)

Input

  • 0-10 Vdc
  • 0-20 mA
  • 4-20 mA

Load Impedance

  • 1E13 ohms

Measuring Error

  • 0.1 % of Measuring Range, ± 1-Digit
  • 0.2 % of Measuring Range, ± 1-Digit - Measuring Input (Pt1000/2-Wire)
  • 2 K, ± 1-Digit - Measuring Input (Thermocouple)

Measuring Range

  • 0(4)-20 mA / 0-10 Vdc - Measuring Input (Direct Current/Voltage)
  • -270° to 1,820° C (-454° to 3,308° F)

Measuring Span

  • -22 to 24 mA / -12 to 12 V - Measuring Input (Direct Current/Voltage)

Measuring Time

  • 0.1 to 10.0 seconds

Mounting

  • Pluggable Screw Elements

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Resistance

  • 100 ohms (At 0(4) to 20 mA) - Input Resistance
  • 100,000 ohms (At 0-10 Vdc) - Input Resistance
  • 1E13 ohms - Surface Resistance
  • Pluse Output 0 to 85 % Annual Mean, Non-Condensing - Weathering Resistance

Resolution

  • 0.1° C
  • Approximately 18-bit at 1 second Measuring Time

Sensor / Probe Type

  • Thermocouples: Typical L, J, K, B, S, N, E, T, & R

Storage Temperature

  • -20° to 80° C (-4° to 176° F)

Supply Voltage

  • 115 Vac
  • 230 Vac ± 10 %, 6 VA, Max.
  • 24 Vac
  • 24 Vdc, Galvanically Separated, Max.

Thermal Drift

  • 100 ppm/K

Wired Connection

  • PG Cable Glands
