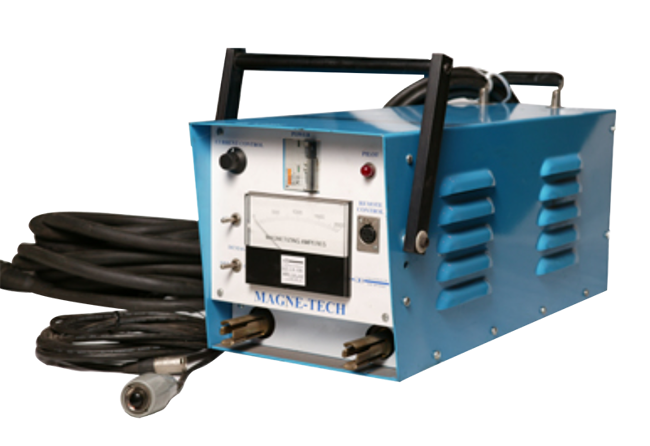

Portable MPI Unit
Brand: Gould-Bass Company, IncThe Gould-Bass line of Magne-Tech® portable magnetic particle inspection units can be used for a wide variety of applications to quickly and reliably detect surface and near surface discontinuities in both circular and longitudinal modes. Because of their small size and light weight, the Models 1500 & 1515 can be easily transported by one person to the inspection site.
This compact feature is particularly valuable in limited access areas, such as those found on ships, bridges, pipeline, aircraft, petro chemical plants as well as other close quarter applications.
Features- Meets Military & Industrial Specifications
- More output per unit weight & size
- Advanced modular design
- Simple to operate
- Rugged duty cycle
- Highly portable/transportable
- Ideal for use in limited access areas
- Protected recessed front control panel
- HWDC & AC magnetizing power
- 1515D provides auto AC demagnetization
- Thermal overload protection
- For prod or cable wrap use
- Infinity variable current control
- Remote control feature
Specifications
Brand
Max AC Output
- 1,800 A
Max HWDC Output
- 2,000 A
Line Amp Draw
- 70/35
Electrical
- 240/460/60/1
Weight
- 90 lbs
Dimensions
- 9.5" x 11" x 24.5"
Certifications & Approvals
- ASTM E1444 & E-709 ASME Section III,
- Navships 250-1500 Mil-STD-271
- Bridges
- Railroads
- Pipeline
- Pressure Vessels
- Tubing
- Bar Stock
- Forgings
- Castings
- Aircraft
- Ships
