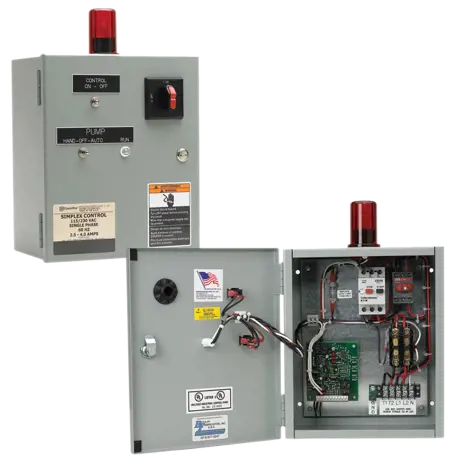

Indoor/Outdoor (without capacitors) Disconnect Panel (Duplex)

Brand: Goulds Water Technology
Add Product to My Catalog

Oversize enclosure to accommodate all options. One main disconnect through-the-door with door interlock, prevents the door from accidentally being opened when the disconnect is in the ON position.

Pad-lockable in the OFF position only. A manual lockable disconnect feature on the motor overload protector. Lock not provided. Oversize magnetic contactor.

Ambient compensated bi-metallic (Class 10) motor overload circuit protector. Instantaneous magnetic trip for short circuit protection.

Single-phase protection for three-phase motor. Field adjustable within the amp. range. Control transformer with fused primary and fused secondary on all three-phase.

Single-phase 115 volt has a fused control circuit. Through-door hand-off-auto switch, control on/off switch and green pump run light.

Numbered and wired control terminal board. Layout and schematic CAD diagrams can be provided upon request.

Optional alarm circuit may be field modified to use a 115 volt AC external power source.

Specifications

Brand

Specifications

  • Accepts single or dual power feed.
  • Solid state printed circuit control board with float indicator lights
  • Main disconnect
  • Alternator for duplex version
  • Alarm horn
  • Auxiliary alarm contacts
  • Capacitors for pumps requiring external motor components are not included or available with this panel

Single Phase

  • Field adjustable for 115 or 230 V, 60 Hz.
  • Adjustable motor overload protectors redundant to built-in overload in single phase motors

Three Phase

  • Field adjustable for 208/230/460/575 V, 60 Hz
  • 115 V control circuit transformer
  • Adjustable motor overload protectors
  • Heaters not required

  • Superior quality simplex and duplex liquid level controller automatically maintains pump operation. Includes high-level alarm warning for a variety of sump, effluent, sewage and water transfer applications with ability to disconnect power at panels

Documentation

Brochure

Manual

Parts

Specifications

Technical Brochure
