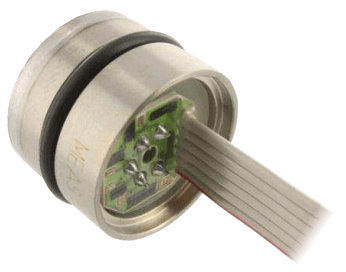

154BC Media Isolated mV Output Pressure Sensor
Brand: American Sensor Technologies IncThe 154BC is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel or ASTM Grade 2 CP titanium housing.
The 154BC is a low cost unit designed without a header for o-ring mounting and OEM applications where compatibility with corrosive media is required. The titanium option offers greater resistance to corrosive materials and harsh cleaning chemicals, opening the range of its application use to things such as dialysis machines and salt/brackish water measurements.
The sensing package utilizes silicone oil to transfer pressure from either a 316L stainless steel or titanium diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.
An additional laser-trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%. Please refer to the 154N uncompensated and constant voltage datasheets for more information on different features of the 154.
Features- O-Ring Mount
- -20ºC to +85ºC Compensated Temperature
- 1.0% Interchangeable Span 1 (provided by gain set resistor)
- Solid State Reliability
- ±0.3% Pressure Non Linearity
- Titanium Option
Specifications
Accuracy
- ± 0.3 % of Span Non-Linearity
Ambient Temperature Range
- 25° C (77° F)
Applications
- Compressors
- Fresh, Waste, Salt & Brackish Water Measurement
- Hydraulic Controls
- Medical Instruments (Dialysis Machines)
- Pressure Transmitter
- Process Control
- Refrigeration Equipment
Approvals & Certifications
- RoHS
Burst Pressure
- psi: 600 (kPa: 4,137, bar: 41.37) - Max.
Compensated Temperature
- -20° to 85° C (-4° to 185° F)
Dimensions
- 0.746" x 0.54" (18.97 x 13.8 mm)
Electrical Connectors
- Cable w/ Connector
- Ribbon Cable
- Solder Pads
Enclosure, Body Material
- 316L Stainless Steel
- ASTM Grade 2 CP Titanium
Hysteresis
- ± 0.2 % of Span - Pressure
- ± 0.25 % of Span - Thermal: Span & Offset
Insulation Resistance
- 50 MΩ at 50 Vdc
Media
- Gas
- Liquids & Gases
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- ± 1.0 mV
Output Load
- 5 MegoOhms - Output Load Resistance
Output Noise
- 1 UV Peak-to-Peak (10 Hz to 1 kHz)
Overpressure & Static Pressure Limits
- psi: 500 (kPa: 3,447, bar: 34.47) - Max.
Power Requirement
- 1.5 mA
Pressure Range
- psi: 0 to 300 (kPa: 0 to 2,068, bar: 0 to 20.68)
Pressure Type
- Absolute
- Gauge
Repeatability
- ± 0.02 % of Span
Resistance
- 3 to 6 kΩ - Output
- 3.5 kΩ - Input
Response Time
- 0.1 ms - 10 % to 90 %
Stability
- ± 0.1 % of Span Per Year - Long Term (Span)
- ± 0.25 % of Span Per Year - Long Term (offset)
Storage Temperature
- -50° to 125° C (-58° to 257° F)
Temperature Effect
- ± 0.75 % of Span
