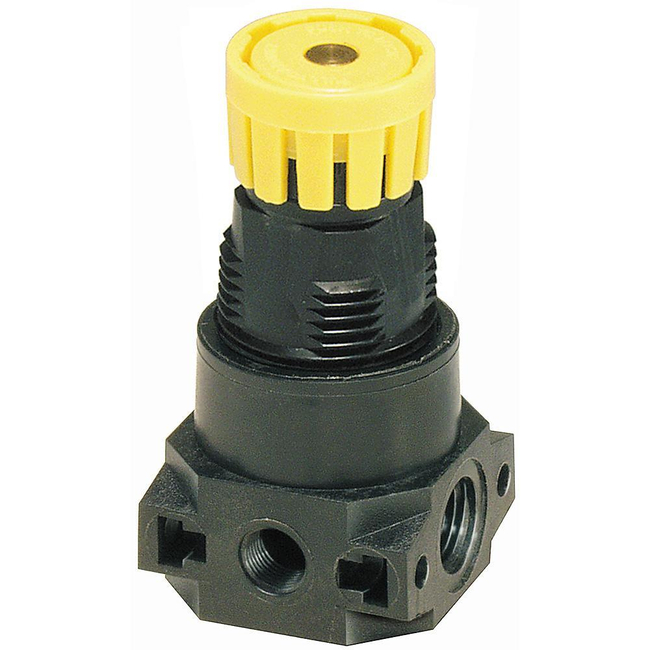

Pressure Regulator - P3A-R Series (Miniature)
Brand: Parker HannifinP3A-R non-modular mini plastic regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure.
They provide quick response and accurate pressure regulation for the most demanding industrial applications.
They are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation.
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance.
Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself.
Features- Quick response
- Accurate pressure regulation
- Easy to design to your application
Specifications
Brand
Body Material
- Plastic
Flow Rate (dm3/sec)
- 6 | 7
Flow Rate (scfm)
- 13 / 15
Gauge Port
- 1/8"
Maximum Inlet Pressure (bar)
- 8.3
Maximum Inlet Pressure (psig)
- 120
Operating Temperature (°C)
- 0° to +52° C
Operating Temperature (°F)
- +32° to +125° F
Port Size
- 1/8", 1/4"
Port Type
- NPT Female
Pressure Control Range (bar)
- bar: 0 to 1, 0 to 2, 0 to 4, 0 to 8
Pressure Control Range (psig)
- psig: 1 to 15, 1 to 30, 1 to 60, 2 to 110
Product Type
- Miniature Regulator
Seal Material
- Nitrile
Weight (kg)
- 0.1
Weight (Lbs)
- 0.23
- General Assembly
- Packaging
- Conveyance
- General Pneumatics
