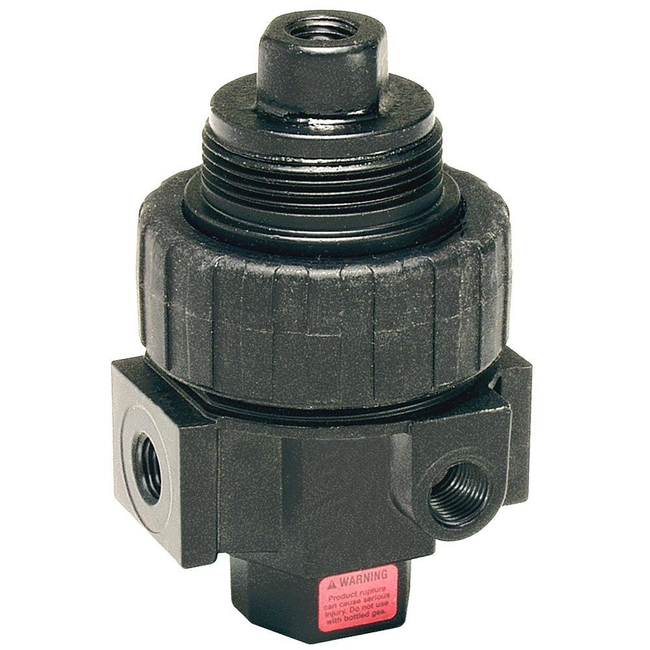

Standard Pilot-Operated Pressure Regulator - 12R Series
Brand: Parker HannifinParker's 12R Pilot Operated Regulator provides accurate pressure regulation and very quick response times. This regulator will handle the most demanding industrial applications.
Parker's 12R Pilot Operated Regulators provide accurate pressure regulation and very quick response times and are designed to handle the most demanding industrial applications.
This pilot operated regulator can be mounted out of reach, installed in a convenient location on your machine. This regulator is ideal for rugged environments and in applications where units are not readily accessible.
The 12R also has high flow performance and is great fit for those installations requiring constant pressure.
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With various options available, 12R regulators can be easily configured for your application.
Features- Robust and durably engineered for most rugged and demanding applications
- High Flow Performance
- Easily configured for your application
Specifications
Brand
Body Material
- Zinc
Flow Rate (dm3/sec)
- 66
Flow Rate (scfm)
- 140
Gauge Port
- 1/4"
Maximum Inlet Pressure (bar)
- 0 to 17.2
Maximum Inlet Pressure (psig)
- 0 to 250
Operating Temperature (°C)
- 0° to +80° C
Operating Temperature (°F)
- +32° to +175° F
Port Size
- 1/2", 3/4"
Port Type
- NPT, BSPP
Pressure Control Range (bar)
- 17.2
Pressure Control Range (psig)
- psig: 250
Pressure Regulator Type
- Standard Pilot Controlled Regulator
Seal Material
- Nitrile
Weight (kg)
- 0.91
Weight (Lbs)
- 2
- General Assembly
- Packaging
- General Pneumatic
- Markets:
- General Industrial
- Factory Automation
- Automotive
- Heavy Industries
