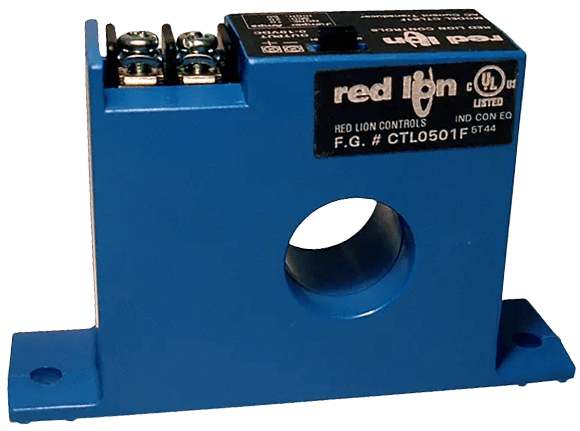

Model CTL AC Current Transducer
Brand: Red Lion ControlsCTL Series Transducers combine a current transformer and a signal conditioner into a single package.
This provides higher accuracy and easier installation and saves valuable panel space.
The CTL Series transducers have jumper selected current input ranges and industry standard 0-10 Vdc or 4-20 mA outputs.
The CTL Series is designed for application on “linear” or sinusoidal AC loads. Available in a split-core or solid core case.
Select the CTL Series for constant speed loads or On/Off loads.
Features- Average responding output: 0-10 Vdc or 4 to 20 mA
- Jumper selectable ranges
- Output is magnetically isolated from the input
- Split-core and fixed-core cases
Specifications
Brand
Accuracy
- 0-10 Vdc: 1 % of Full Scale
- 4-20 mA: 0.5 % of Full Scale
Approvals & Certifications
- CE
- CSA C22.2 No. 14-M95
- UL 94V-0
Electrical Connectors
- Up to 14 AWG Copper Wire & Tighten Terminals
Frequency
- 0-10 Vdc: 50/60 Hz
- 4-20 mA: 20 to 100 Hz
Humidity
- 0 to 95 % RH, Non-Condensing
Isolation
- 3 kV
Operating Temperature
- -20° to 50° C (-4° to 122° F)
Output
- 0-10 Vdc (Limit: 15 Vdc)
- 4-20 mA (Limit: 40 mA)
Output Load
- 0-10 Vdc: 100 kΩ
Power Supply
- 24 Vdc, Nominal
- 40 Vdc, Max.
Response Time
- 0-10 Vdc: 100 ms
- 4-20 mA: 300 ms
Torque
- 0.79 Nm
- 1.01 Nm
