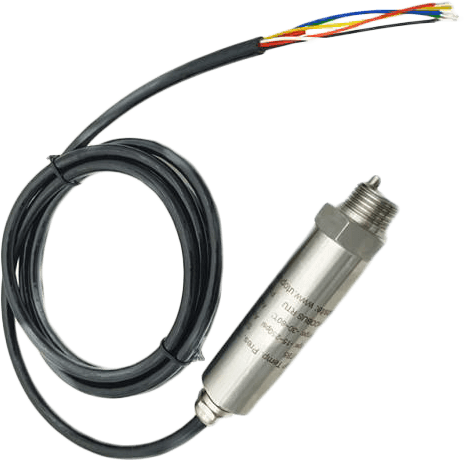

New Designed Pressure Temperature Combined Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, LtdUTB5 new designed pressure temperature combined transmitter is made by using isolated pressure sensor, temperature sensor and special amplifying circuit.
This transmitter transforms the pressure and temperature of the measured medium to 4~20 mA or other standard signal separately.
UTB5 can measure pressure and temperature simultaneously, it is suitable for use in the place where requires not only pressure measurement, but also temperature measurement.
Features- Measure temperature and pressure simultaneously, save cost
- Anti impact vibration resistance
- This new designed pressure temperature combined transmitter has compact size and easy for installation
- High accuracy good stability
- Wide operating temperature range
Specifications
Measured Temperature Range
- 0° to +140° C
Measuring Accuracy of Temperature
- 0.5 % Full Scale, 1 % Full Scale
Output Signal of Temperature
- 4-20 mA
Measured Pressure Range
- 0 ~ 10 to 400 bar
Measuring Accuracy of Pressure
- 0.25 % Full Scale, 0.5 % Full Scale
Output Signal of Pressure
- 4 ~ 20 mA (0 ~ 5 V, 1 ~ 5 V optional)
Working Temperature Range
- -20° ~ +85° C
Compensated Temperature Range
- -10° ~ +100° C
Power Supply
- 12-32 Vdc
Response Time
- < 5 ms
Process Connection
- G 1/2" or others
Electrical Connection
- Hirschmann Connector or Others
Material of Housing
- Stainless Steel
Protection
- IP65
- UTB5 New Designed Pressure Temperature Combined Transmitter has been widely used in:
- Petrochemical Industry
- Electric Power
- Metallurgy Machinery
- Oil Well Temperature Pressure Measurement
- Diesel Engine altogether Temperature Pressure Measurement etc
