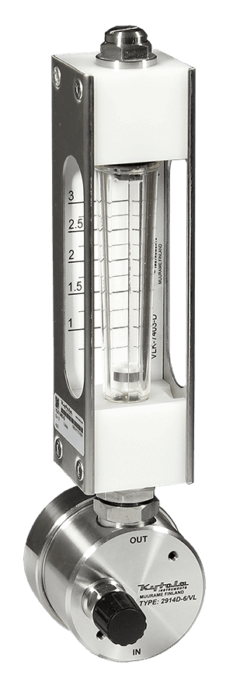

Constant Flow Regulator Model 2914
Brand: Kytola Instruments OyKYTOLA® Model 2914 Constant Flow Regulator is a sturdy, industrial constant flow regulator.
It is designed to provide constant flow of medium volume liquid flows in applications where supply or back pressure varies.
Features- Two-piece Stainless Steel
- Construction
- Easy Maintenance
- Competitively Priced
Specifications
Brand
Maximum Flow
- 20 L/min H₂O
Nominal Flow
- 14 L/min H₂O
Maximum Differential Pressure
- 12 bar
- 20 bar - Special Construction on Request
Maximum Static Pressure
- 25 bar
Minimum Pressure Difference
- 3 bar
Connections G/NPT
- G 1/2"
- NPT 1/2"
Maximum Temperature
- 90° C
- Momentary 120° C
Weight
- 1.8 kg
Body
- AISI 316
Valve
- AISI 316
Spring
- AISI 316
Membrane
- EPDM
Seals
- Nitrile
Installation Position
- Any Required
- Control of Seal Waters
- Control of Flush Waters
- Batching of Liquids
- Water Purging
