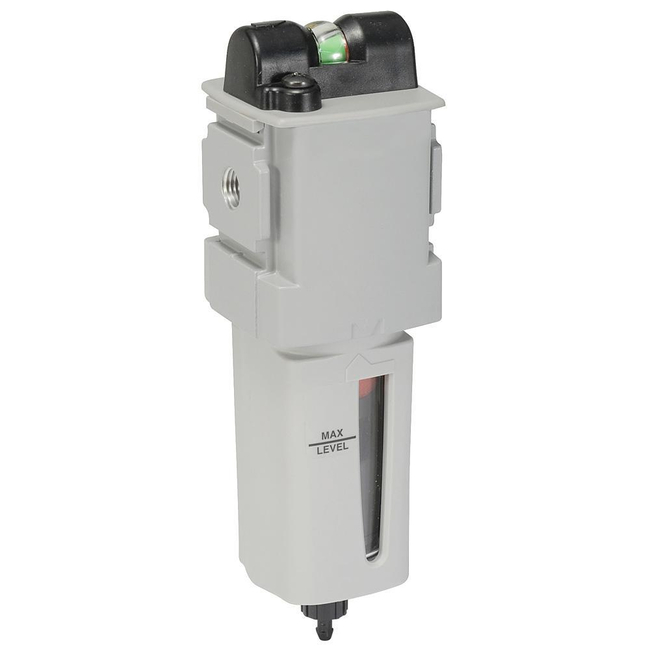

Global Compact Coalescing Filter - P32F Series
Brand: Parker HannifinParker's P32F is a compact coalescing filter with an available differential pressure gauge that is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system.
Specifications
Brand
Body Material
- Aluminum
Bowl Material
- Polycarbonate / Aluminum
Drain Option
- Manual / Auto
Element
- 0.01 μm / 1 μm / Adsorber
Flow Rate
- 53 scfm (1 micron) / 36 scfm (0.01 micron) / 85 scfm (Adsorber)
Maximum Inlet Pressure
- 150 psig (Plastic) / 250 psig (Metal)
Maximum Inlet Pressure
- 10 bar (Plastic) / 17 bar (Metal)
Operating Temperature
- -13° to +125° F (Plastic Bowl) / -13° to +150° F (Metal Bowl)
- -25° to +52° C (Plastic Bowl) / -25° to +65.5° C (Metal Bowl)
Port Size
- 1/4", 3/8", 1/2"
Port Type
- BSPP / BSPT / NPT
Product Type
- Compact Coalescing & Adsorber Filter
Seal Material
- Nitrile
Weight (kg)
- 0.32 kg (0.71 lb)
