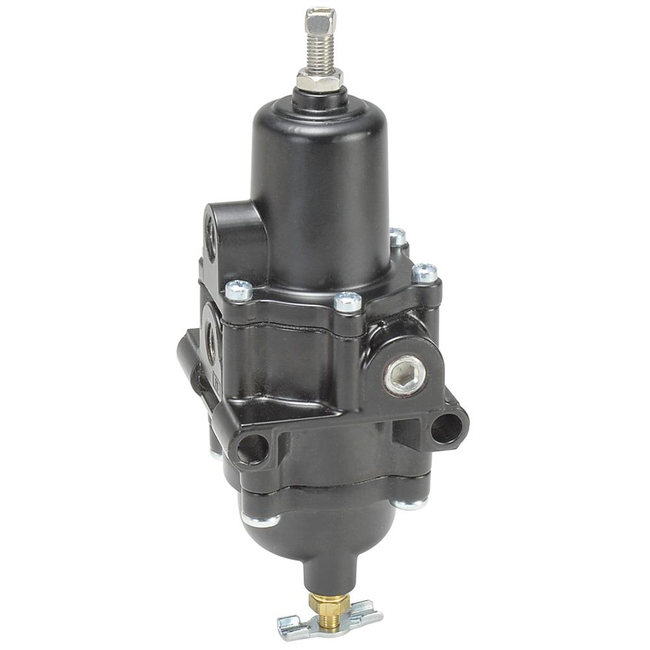

Precision Filter Regulator - P3EA632
Brand: Parker HannifinThe Parker P3RA632 is a combined particulate filter and precision regulator with an integral 5 micron element that is uniquely suited for harsh conditions.
Features- Minimizes space
- External epoxy finish and brass free construction
- Ideally suited for harsh and demanding corrosive applications
- Easy to configure
Specifications
Brand
Body Material
- Aluminum
Flow Rate (dm3/sec)
- 152.4 @ 7 bar
Flow Rate (scfm)
- 25 @ 100 psig Supply
Maximum Inlet Pressure (bar)
- 17
Maximum Inlet Pressure (psig)
- 250
Operating Temperature (°C)
- -40° to +71° C
Operating Temperature (°F)
- -40° to +160° F
Port Size
- 1/4"
Port Type
- NPT, BSPP
Pressure Control Range (bar)
- psig: 0.03 to 2, 0.07 to 4, 0.14 to 8.2
Pressure Control Range (psig)
- psig: 0.5 to 30, 1 to 60, 2 to 120
Pressure Control Sensitivity (bar)
- 0.003
Pressure Control Sensitivity (cmH20)
- 2.54
Pressure Control Sensitivity (InH20)
- 1
Pressure Control Sensitivity (psig)
- 0.036
Product Type
- Precision Filter/Regulator
Ratio
- N/A
- General Industrial
- Packaging
- Conveyance
- Production Lines
- Assembly
