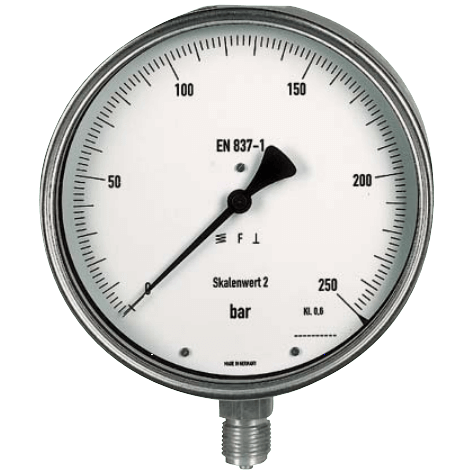

MAN-F Bourdon Tube Test Pressure Gauge
Brand: KOBOLD Instruments, Inc
These test pressure gauges are manufactured to the very highest standards and are used to test pressures of tanks, pipes fittings and in laboratories.
Measuring Principle
The precision test pressure gauges have a high-grade measuring element. The pressure proportional elastic deformation of the Bordon tube is transmitted through a low friction movement to the knife edge pointer.
With the help of the scale on the dial you can read the current pressure at measuring element.
Specifications
Brand
Accuracy
- 0.25 - Class
- 0.6 - Class
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
- -40° to 60° C (-40° to 140° F)
Applications
- Control & Adjustment, Onsite Verification of Operating Pressure-Measuring Gauges
- Gauge Calibration
- Laboratory Equipment
- Tests Stands
BSP Connection
- G 1/2" Male
Connection Material
- 316Ti Stainless Steel
- Brass
- Monel
- Stainless Steel
Electrical Connectors
- M20 x 1.5
Enclosure, Body Material
- Aluminum
- Stainless Steel
- Steel Black
Environmental Protection
- IP54
- IP65
Materials of Construction
- 304L Stainless Steel - Pointer
Movement
- Stainless Steel
Pressure Range
- bar: 0 to 2,500
- kPa: 0 to 250,000
- psi: 0 to 36,260
Process Temperature
- 60° to 200° C (140° to 392° F)
Ring Material
- Stainless Steel
- Steel Black
Wetted Materials
- 316Ti Stainless Steel
- Beryllium Copper
- Monel
Window Material
- Instrument Glass
- Safety Glass
