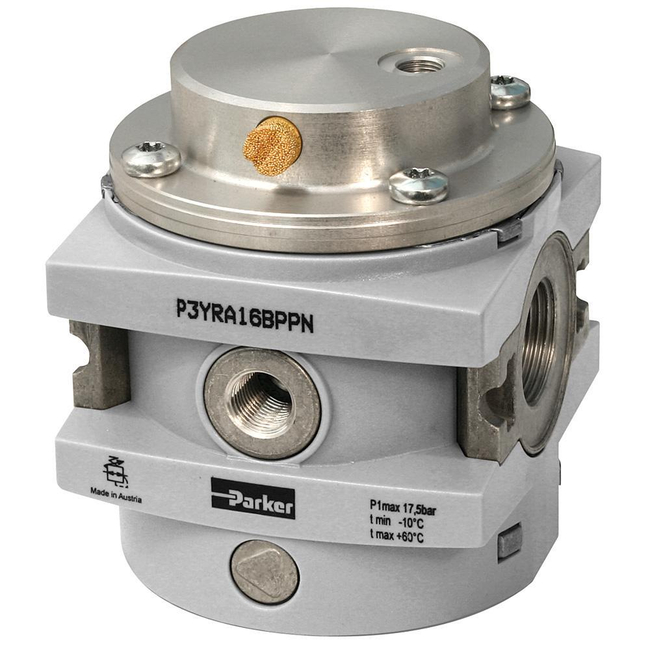

Global High-Flow Pilot Controlled Pressure Regulator - P3YR Series
Brand: Parker HannifinParker's P3YR Pilot Operated Regulator provides accurate pressure regulation and very quick response times.
This regulator will handle the most demanding industrial applications. .
Specifications
Brand
Body Material
- Aluminum
Flow Rate (dm3/sec)
- 333.1 (3/4") / 160.4 (1")
Flow Rate (scfm)
- 706 (3/4") / 340 (1")
Gauge Port
- 1/4"
Maximum Inlet Pressure (bar)
- 2 to 17.5
Maximum Inlet Pressure (psig)
- 29 to 145
Operating Temperature (°C)
- -10° to +60° C
Operating Temperature (°F)
- +14° to +140° F
Port Size
- 3/4", 1"
Port Type
- NPT, BSPP
Pressure Control Range (bar)
- bar: 17.5
Pressure Control Range (psig)
- psig: 145
Pressure Regulator Type
- Pilot Operated Regulator
Seal Material
- Nitrile NBR
Weight (kg)
- N/A
Weight (Lbs)
- N/A
