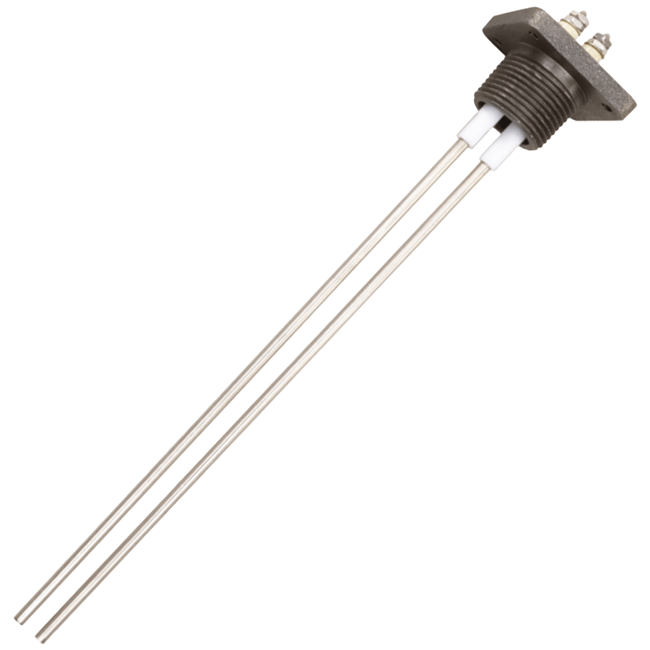

Warrick Series 3J Electrode Fitting
Brand: Gems Sensors, IncThe Series 3J Miniature Fitting has a 1" NPT body and housing.
It is designed for applications where multiple probes are required in a small, non-pressure location (for single probe applications, 3E1 fitting recommended).
Features- Compact
- One-Piece Probe/Body Construction
- Quick Install & Connect
- Order Sized to Your Spec
Specifications
Brand
Applications
- Non-Pressured Vessels & Small Vessels
Enclosure / Body Material
- 316L Stainless Steel
- Cast Iron
- Red Brass
- Terminal Housing: Die Cast Aluminum, Epoxy Coated
NPT Connection
- 1" NPT Male
Sensor / Probe Diameter
- 3/16" O.D.
Sensor / Probe Material
- 316 Stainless Steel
- Insulation: Teflon
Temperature Range
- 0° to 260° C (32° to 500° F)
- Non-Pressured Vessels & Small Vessels
