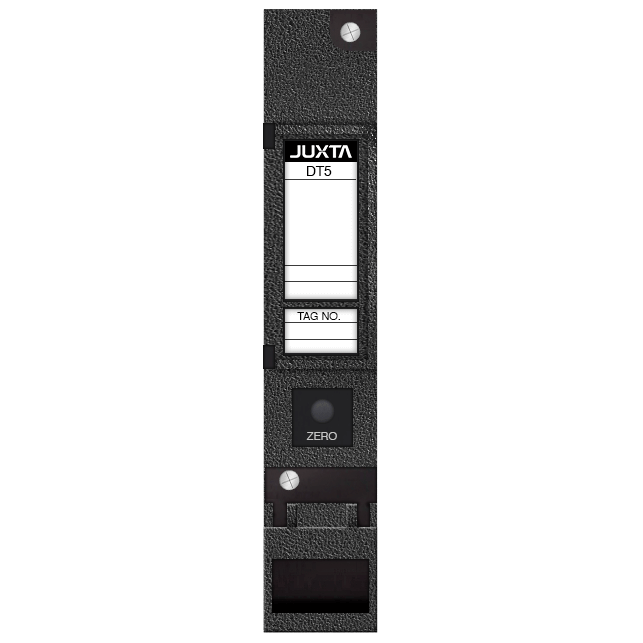

DT5 Free Range Type Thermocouple Converter
Brand: Yokogawa Electric Corporation
The DT5 is DCS correspondence nest stored type signal conditioner that is connected to an IEC/JIS-standard thermocouple (TC), such as a Type K, T, E, J, R, S, B or N thermocouples to convert temperature signals into isolated DC current or DC voltage signals.
Features- Selection of input type, input range setting, burnout setting, output adjustment, I/O monitoring, and loop back test can be made using the communication I/F card (DSC2) and the optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200).
- For the Fahrenheit display, specify the option “/DF”.
- Available for the combination with Safety barrier (BARD-600).
Specifications
Accuracy
- ± 0.1 % of Span or ± 10 µV whichever is greater - Output 1
- ± 0.2 % or Less of Relative Error of Span to the Output-1 - Output 2
- ± 1° C (± 1.8° F) - Accuracy of Reference Junction Compensation (Typical K, J, E, T, B, N)
- ± 2° C (± 3.6° F) - Accuracy of Reference Junction Compensation (Typical R, S)
Burn-Out
- Burn-Out Time: 60 seconds
- Down
- Off
- Up
Communication
- DSC2 Card
Consumption
- 50 mA at 24 Vdc (1-5 Vdc)
- 75 mA at 24 Vdc (4-20 mA DC)
Current
- 0.1 µA - Burn-Out Detective Current
- 1-24 mA DC - Span
Humidity
- 5 to 90 % RH, Non-Condensing
Insulation Resistance
- 100 MΩ min. at 500 Vdc between Input, Output & Power Supply Mutually
Mounting
- M4 Screw
- Nest-Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-24 mA DC
- -10 to 10 Vdc
- 1-5 Vdc
- 4-20 mA DC
Power Supply
- 24 Vdc ± 10 % (Ripple Content 5 % Peak-to-Peak or Less)
Power Supply Effect
- ± 0.1 % of Span or Less
Resistance
- 1 Kiloohm or Less - Signal Source Resistance
- 1 MΩ - Input Resistance
- 10 kΩ or more when Power Off - Input Resistance
- 750 to 250,000 ohms - Allowable Load Resistance
Response Time
- 200 ms, 63 % Response (10 to 90 %)
Sensor, Probe Type
- B Thermocouple
- E Thermocouple
- J Thermocouple
- K Thermocouple
- N Thermocouple
- R Thermocouple
- S Thermocouple
- T Thermocouple
Span & Zero Adjustments
- ± 1 % of Span - Input Adjustment
- ± 10 % of Span - Output Adjustment
Supply Voltage
- -0.5 to 4 Vdc - Permissible Applied Voltage
- 1,500 Vac/minute - Withstanding Voltage between Input, Output & Input, Power Supply
- 10 mV-20 V - Span (DC)
Temperature Effect
- ± 0.2 % of Span or Less for a Temperature Change of 10° C (18° F)
Temperature Range
- -270° to 1,820° C (-454° to 3,308° F) - Thermocouple Measuring Range
Zero Offset
- ± 25 mV or within 3 x the Measuring Span, whichever is Smaller - Zero Elevation
- 0 to 200 % - Zero Elevation (Current Signal)
- -100 to 200 % - Zero Elevation (Voltage Signal)
