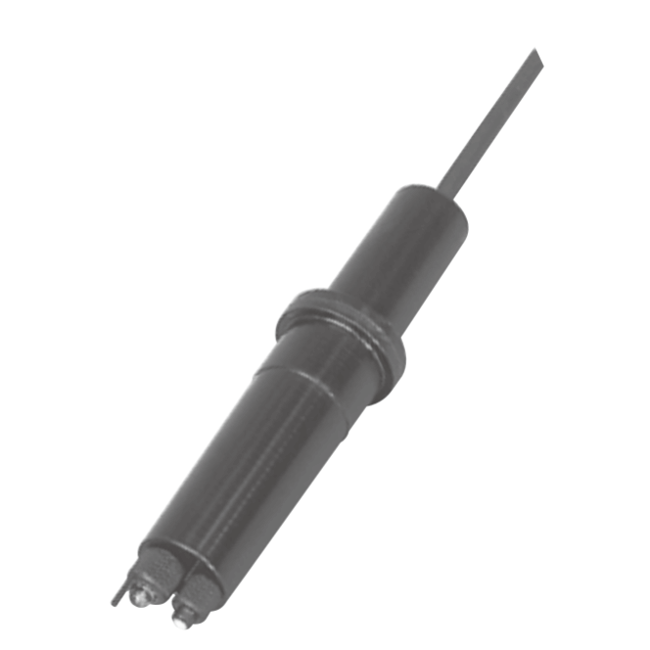

OR8EFG KCI Filling Type ORP Sensor
Brand: Yokogawa Electric CorporationYokogawa’s process OR8EFG meters are highly reliable and feature advanced functions which are useful for a wide variety of applications including water quality management in a broad range of production processes and medium-sized wastewater treatment plants, or for general pH and ORP control systems.
Based on Yokogawa’s track record and years of experience, a comprehensive range of products has been produced to provide solutions best suited to individual applications.
Features- With the body made of Ryton, a strong engineering plastic, which is comparable to Fluoropolymer (PTFE) in terms of corrosion resistance and heat resistance, it allows for a wide range of applications
- A single type of sensor can support all applications regardless of whether a holder or cleaner is used
- The integrated-sensor design simplifies calibration with standard solutions and maintenance
- The platinum or gold electrode of a ORP sensor and junction can be individually replaced
Specifications
Applications
- General ORP Control Systems
- Medium-Sized Waste Water Treatment Plants
- Water Quality Management in a Broad Range of Production Processes
Cable Length
- 9.84 to 65.61 ft (3 to 20 metres)
Cable Material
- Chlorinated Polyethylene Rubber - Cable Sheath
Electrical Connectors
- G 1/2" Plastic Gland: 21 mm (pH Sensor Side) & 13 mm (pH Transmitter or Converter Side) Terminal Box
Enclosure, Body Material
- Ceramic
- Fluoro Rubber (FKM)
- Gold-Epoxy Resin
- Hastelloy C
- Platinum-glass
- Ryton (PPS Resin)
- Titanium
Materials of Construction
- Gold - Electrode
- Platinum - Electrode
- Polyethylene (Medium Pressure) - KCl Tube
- Polypropylene - Holder Material for Float, Submersion, Guide-Pipe
- PVC - Holder Material for Guide-pipe & KCl Tube
- Stainless Steel - Holder Material for Float, Suspension, Flow-through, Submersion
Measuring Range
- -1,500 to 1,500 mV
Mounting
- 2" Pipe Mounting Bracket
Pressure Range
- psi: 0 to 1.45 (kPa: 0 to 10, bar: 0 to 0.1) - General-purpose Atmospheric Pressure
- psi: 0 to 72.52 (kPa: 0 to 500, bar: 0 to 5) - Medium Pressure Atmospheric Pressure
Principle of Operation
- Metal Electrode Method
Process Temperature
- -5° to 105° C (23° to 221° F)
Sensor, Probe Style
- Float
- General ORP Control Systems
- Medium-Sized Waste Water Treatment Plants
- Water Quality Management in a Broad Range of Production Processes
