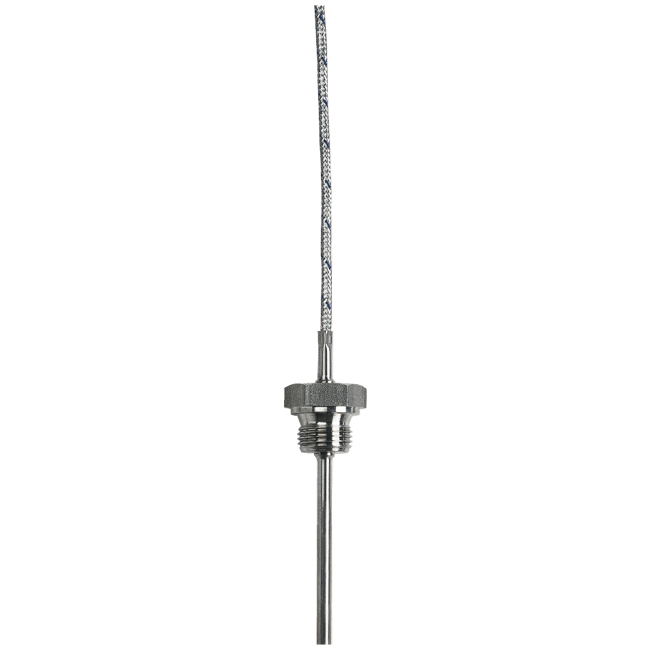

TTE-1 Screw-In Thermocouple
Brand: KOBOLD Instruments, Inc
The screw-in thermocouples comprise a rugged sensor made of stainless steel in which the thermocouple is inserted. This is directly connected with the compensating lead. Depending on the version, the connecting leads are suitable for dry or moist rooms.
The junction between connecting lead and protective tube is strain relieved and is fitted with a bend protection. Protective tube and thread are made of stainless steel. Other materials are available on request.
Thermocouples according to IEC 584-1, class 2 are used in the measuring insert as standard. These sensors are available as single or double thermocouples.
Specifications
Brand
Accuracy
- Class 2
Applications
- Temperature Meaurement
BSP Connection
- G 1/2" Male
Cable Length
- 8.2 ft (2.5 m) Standard
Connection Material
- 316Ti Stainless Steel
- Glass Fibre
Enclosure / Body Material
- 316Ti Stainless Steel
Media
- Liquid & Gaseous Media
Metric Connection
- M10 x 1 Male
Temperature Range
- -200° to 600° C (-325° to 1,100° F)
