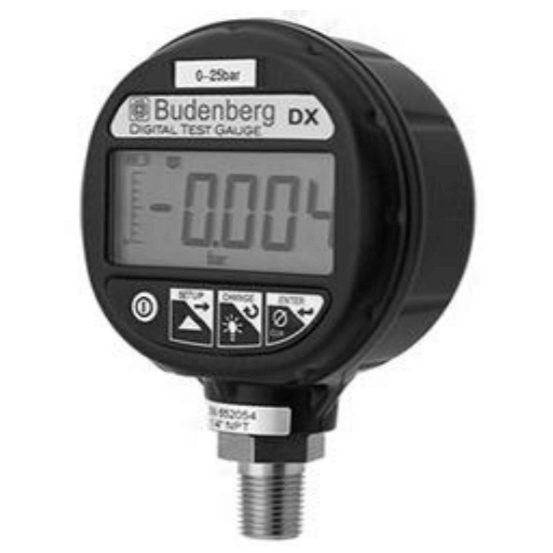

DX Digital Test Gauge
Brand: BudenbergThe all new DX digital gauge from Budenberg is designed to offer a truly simple digital gauge to cover a wide range of applications from calibration laboratory to in-field use.
The DX is offered in a choice of standard ranges 0 to 700 bar in conformance with the EN-837 standard. Alternatively units can be factory programmed to offer the precise range and pressure units required for any particular application.
Based around a high specification Peizoresistive silicon sensor, the DX has an accuracy of 0.1% of the calibrated span which is fully temperature compensated across the range of -10° to 50° C, thereby allowing accurate readings to be taken over a wide range of ambient conditions.
The unit has a large five digit LCD display that incorporates a vertical bar graph to indicate the %age of the range being displayed. Menu keys allow the user to define or reconfigure the mode and characteristics of operation if required.
Specifications
Brand
BSP Connection
- 1/4" BSP Male
Dial Size
- 3.4" (86 mm)
Environmental Protection
- IP66
- NEMA 4
NPT Connection
- 1/4" NPT Male
Pressure Range
- bar: 0 to 700
- kPa: 0 to 70,000
- psi: 0 to 10,150
Pressure Type
- Gauge
Mounting
- Direct
Accuracy
- 0.1 % of Calibrated Span
- 0.25 % of Vacuum Range of -14.5 to 0 psig
Operating/Compensated Temperature
- -10° to +50° C
Storage Temperature
- -40° to +70° C
Case Material
- Very Robust Polyester / Polycarbonate Blend
