FQ1A/FQ1V Pulse to Analog Converter
Brand: Yokogawa Electric Corporation

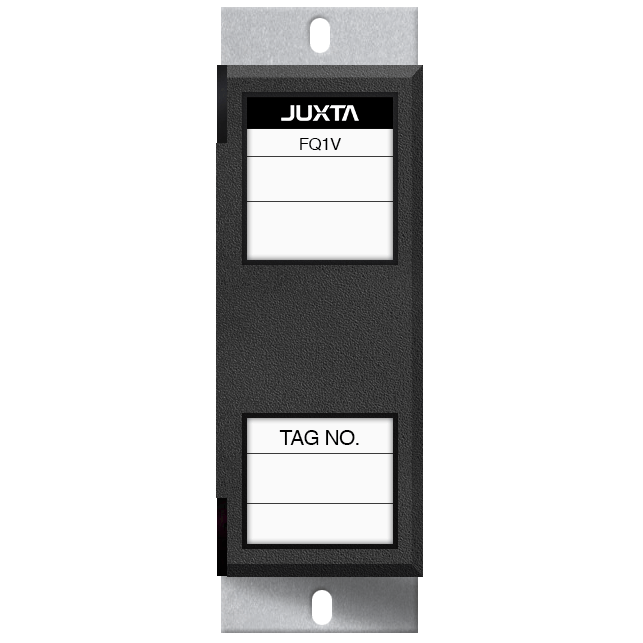

The FQ1A/FQ1V is a compact, front terminal connection type pulse-to-Analog converter that receives pulse-train signals and converts them into isolated DC voltage or DC current signals.
Features- With built-in 12 V or 24 V power supply for pulse transmitter inputs
- Input pulse types include current pulse, voltage pulse, non-voltage contact, and open collector contact
- Internal filter to eliminate chattering can be specified when ordering (In cases where the input frequency range is up to 100 Hz, the pulse width is 3 Milliseconds or more)
Specifications
Accuracy
- ± 0.3 % of Span
Consumption
- 60 mA (FQ1V) - Current Consumption
- 90 mA at 24 Vdc (FQ1A) - Current Consumption
Current
- 1-24 mA DC - Span
Duty Cycle
- 50 ± 30 % - Input Pulse Width
Electrical Connectors
- M4 Screw Terminal
Enclosure, Body Material
- ABS Resin
Frequency
- 0 to 10 kHz - Input Frequency
- 10 kHz - Contact or Voltage Pulse
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Input
- 0 to 10 kHz (Span DC: 50 Hz to 10 kHz)
Input Signal
- -1 to 8 V -Low Level
- 2 V or more - High Level
- Contact Pulse
- Current Pulse
- Voltage Pulse
Insulation Resistance
- 100 MΩ or more at 500 Vdc between Input & Output, Output & Power Supply, & Input & Power Supply
Mounting
- DIN Rail Mounting
- Rack-Mounted
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
Output Format
- DC Current Output
- DC Voltage Ouput
Power Supply
- 12 Vdc / 30 mA - Transmitter Power Supply
- 12 Vdc ± 10 %
- 24 Vdc / 30 mA - Transmitter Power Supply
- 24 Vdc ± 10 % (Percentage Ripple is 5 % Peak-to-Peak or Less)
Power Supply Effect
- ± 0.1 % of Span or Less for the Fluctuations within the Operating Range of Power Supply Voltage Specification
Resistance
- 1 Kiloohm - Input Resistance for Current Pulse
- 2 to 250 kΩ or more - Allowable Load Resistance for DC Voltage Output
- 200 ohms - Input Resistance for Current Pulse
- 510 ohms - Input Resistance for Current Pulse
- 750 to 15,000 ohms or Less - Allowable Load Resistance for DC Current Output
Response Time
- 3 seconds - 500 Hz Span, Max.
- 600 ms - 500 Hz Span min. (63 % Response (10 to 90 %))
Span & Zero Adjustments
- -5 to 5 % - Zero Adjustment
- 95 to 105 % - Span Adjustment
Supply Voltage
- 1,500 Vac/minute between Input & (Output & Power Supply)
- 10 mV-20 V - Span (DC)
- 500 Vac/minute between Output & Power Supply
Temperature Effect
- ± 0.2 % of Span or Less for a Temperature Change of 10° C (18° F) - Ambient Temperature Effect
Zero Offset
- 0 to 200 % - Zero Elevation for Current Signal
- -100 to 200 % - Zero Elevation for Voltage Signal
