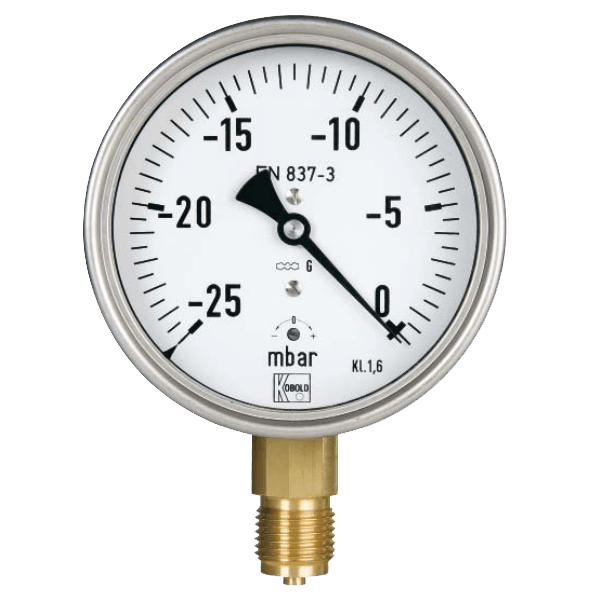

MAN-K Capsule Element Pressure Gauge
Brand: KOBOLD Instruments, IncThe KOBOLD pressure gauges with capsule elements are being used to measure low positive/negative pressures in gaseous media. All stainless steel pressure gauges with capsule element are manufactured by using high-quality stainless steel and are therefore suitable for use with corrosive gases.
All the pressure gauges comply with general international guidelines and take account of standard as well as application- specific requirements. They are the result of the over 70 years experience we have in building pressure gauges.
Specifications
Brand
Accuracy
- 1.6
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
- -20° to 80° C (-4° to 176° F)
Applications
- Air Conditioning Technology
- Exhaust-Gas Measurements
- Filter Status Measurements
- Gas Production
- Leak Testing
- Medical Technology
BSP Connection
- G 1/2" Male
- G 1/4" Male
Connection Material
- 316Ti Stainless Steel - All Stainless Steel Capsule Element Pressure Gauges for Industrial Applications
- Brass - Standard Capsule Element Pressure Gauges for Gases
Element
- 316Ti Stainless Steel - All Stainless Steel Capsule Element Pressure Gauges for Industrial Applications
- CuBe2 - Standard Capsule Element Pressure Gauges for Gases
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP43
- IP54
Fill Material
- Ohne - All Stainless Steel Capsule Element Pressure Gauges for Industrial Applications
- Without - Standard Capsule Element Pressure Gauges for Gases
Housing Size
- 100 mm
- 160 mm
- 63 mm
- 80 mm
Materials of Construction
- Aluminum, Black Anodized - Pointer
Media
- Gas
Movement
- Brass - Standard Capsule Element Pressure Gauges for Gases
Pressure Range
- kPa: -1 to 60
- mbar: -10 to 600
- psi: -0.15 to 8.7
Process Temperature
- 80° C (176° F)
Ring Material
- 304 Stainless Steel
Window Material
- Instrument Glass - Standard Capsule Element Pressure Gauges for Gases
- Safety Glass - All Stainless Steel Capsule Element Pressure Gauges for Industrial Applications
