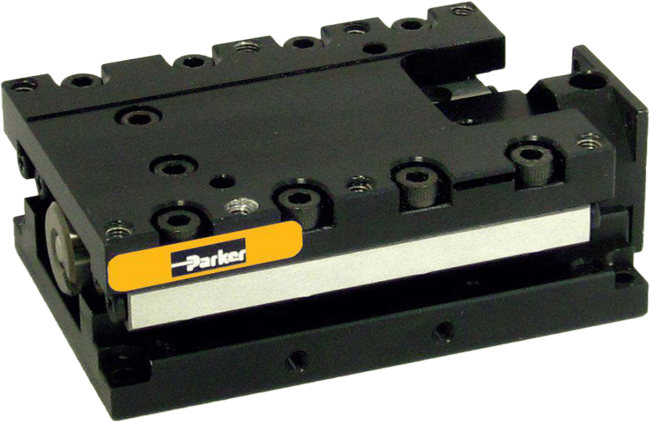

MX45S Leadscrew Driven, Cross Roller Guided, Miniature Linear Positioner
Brand: Parker HannifinParker's MX45S miniature linear positioner delivers smooth motion due to its anti-cage creep, cross roller bearings for its guidance, and leadscrew drivetrain.
Based on the MX80S design, The MX45S has an extremely compact design – measuring just 45 mm in width, and is ideal for space restricted applications in the life sciences or optics market.
The MX45S can easily be configured into multi-axis configurations with standard transition brackets available.
Features- Frame width of 45 mm
- Three standard strokes of 5, 15, 25 mm
- Positional repeatability of +/- 2 micron
- Maximum speeds of 20 mm/sec
- Lead screw drivetrain
- Maximum payload 68.5 N
- Maximum thrust of 40 N
- Pre-configured inline motor mount and mounted motor options
- Standard multi-axis systems
- Standard options for external linear encoders
- Miniature, non-contact home or limit sensors which can be positioned along full length of travel
Specifications
Brand
Additional Protection Option
- None
Axial Load Capacity (Lbs)
- 9
Axial Load Capacity (N)
- 40
Bearing Type
- Cross Roller
Bi-Directional Repeatability (Thou)
- 0.08
Bi-Directional Repeatability (UM)
- 2
Drive Screw Efficiency (%)
- 30 - 47
Drive Type
- Leadscrew
Duty Cycle %
- 50
Inverted Load Capacity (Lbs)
- 15.4
Inverted Load Capacity (N)
- 68.5
IP Protection Rating
- IP00
Linear Feedback Device
- Yes (Encoder: Sine, 0.1 μm or 1 μm Resolution)
Maximum Acceleration (Inch/S2)
- 773
Maximum Acceleration (m/S2)
- 20
Maximum Breakaway Torque (Nm)
- N/A
Maximum Breakaway Torque (oz.-inch)
- N/A
Maximum Running Torque (Nm)
- 0.011
Maximum Running Torque (oz.-inch)
- 1.5
Maximum Screw Speed (RPS)
- 20
Maximum Speed (inch/sec)
- 0.78
Maximum Speed (m/sec)
- 0.02
Maximum Stroke (inch)
- 0.98
Maximum Stroke (mm)
- 25
Normal Load Capacity (Lbs)
- 15.4
Normal Load Capacity (N)
- 68.5
Profile Width (mm)
- 45
Screw Lead Options
- 0.5 mm, 1 mm
Series
- MX
- Life Science
- Optics
