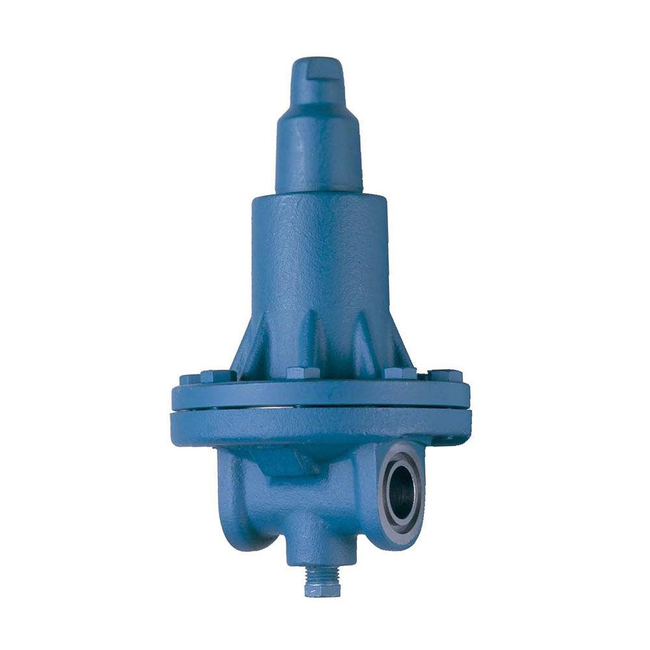

Pressure Regulators- A2
Brand: Parker HannifinParker’s A2 series of compact pressure regulators help reduce system cost and complexity by utilizing a compact housing and direct operation.
These valves are ideal for applications where a larger pilot operating valve is too costly or too large.
The regulators can be used with ammonia and certain other refrigerants, oil, and other approved fluids.
The regulators are ideal for use in systems where a small inlet or outlet pressure regulator is needed and can also be used as a remote pilot for larger control valves that are located in difficult to service areas.
Features- Compact Direct Diaphragm Operated
- Design Pressure (MRP): 27.6 bar (400 PSIG)
- Furnished with Flanged Connections: FPT, SW, WN or ODS
- Available with Close Coupled Strainer
- Stainless Steel Diaphragm
- Easily removed for service
Specifications
Brand
Body Material
- Gray Iron or Ductile Iron
Connection Size
- 1/4" to 3/4" or None
Flange Type
- FPT, Socket Weld, No Flange, ODS, Weld Neck
Flow Coefficient (Cv)
- 0.1 Cv to 1.14 Cv
Flow Coefficient (Kv)
- 0.09 Kv to 1.28 Kv
Maximum Rated Pressure (bar)
- 27.6 bar or 28 bar
Maximum Rated Pressure (psig)
- 400 or 406 psig
Maximum Working Temperature (°C)
- 105° C
Maximum Working Temperature (°F)
- 220° F
Minimum Working Temperature (°C)
- -45° C
Minimum Working Temperature (°F)
- -50° F
Model Number
- Please Configure Part for Model Number
Motor Type
- None, Not Available, Motor Assembly ~ 120 V 50/60 Hz 4-20 mA Standard CAM, Mounting Kit ~ Standard CAM
Plating
- No Plating
Pressure Range (bar)
- 500 mmHg to 8.3 bar, 5.2 to 19.3 bar, 0.35 to 10 bar
Pressure Range (psig)
- 20 Hg to 120 psig, 75 to 280 psig, 5 to 150 psig
Pressure Regulator Type
- Outlet- Internally Equalized, Outlet- Externally Equalized, N/A, Inlet- No Variation, Inlet- with Handwheel, Inlet- Re-Seating Relief, Inlet- Electrically Compensated, Inlet- Pneumatically Compensated (1: 1 Ratio), Inlet- Pneumatically Compensated (3: 1 Rat
Pressure Set Point (bar)
- 1.0 to 19.3 bar
Pressure Set Point (psig)
- 15 to 280 psig
Strainer Type
- Without Strainer or with Strainer
Valve Material
- Standard Material or Meets Pressure Equipment Directive (PED)
Valve Type
- Please Configure Part for Valve Typical
- May be used as a remote pilot for larger valves.
- Modulates flow of refrigerant gas or liquid to maintain constant upstream (or inlet) pressure as set-for, despite load fluctuations. The fluid temperature range for the A2 Series of Regulators is -45°C to 105°C (-50°F to 220°F).
