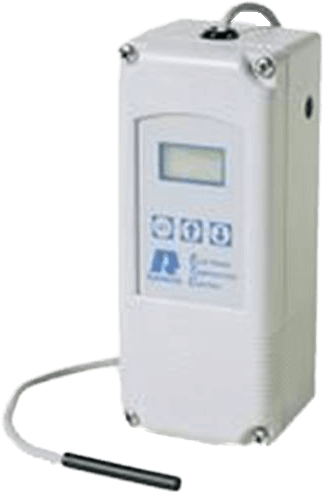

Ranco ETC Digital Temperature Controller
Brand: Ranco ETCThe Ranco ETC is a microprocessor based temperature controller suitable for switching 120Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications.
This is a great universal controller for any application where switching 120Volts or temperatures outside that of a normal home thermostat is required.
The sensor with an 8' foot cable and instructions are included with the unit. (This is the Goldline SP-30 alternative. Goldline HVAC controllers are no longer being manufactured.)
Specifications
Brand
Full Load Amps
- 120 V: 16 (5.8) A
- 208/240 V: 8 (2.9A)
Locked Rotor Amps
- 120 V: 96 (34.8) A
- 208/240 V: 48 (17.4)A
Resistive Amps
- 120 V: 15 (5.8) A
- 208/240 V: 8 (2.9)A
Horsepower
- 120 V: 1 (1/4) HP
- 208/240 V: 1 (1/4) HP
Temperature Setpoint Range
- -30° to 220° F
Differential Range
- 1° to 30° F
Input Voltage
- 120 Vac, 208, 240 Vac
Pilot Duty
- 125 VA at 120/208/240 Vac
Sensor
- Thermistor, 2” long x 1/4”dia with 8' cable (included)
Control Ambient Temperatures (Operating)
- -20° to 140°
Control Ambient Temperatures (Storage)
- -40° to 176°
Ambient Humidity
- 0 to 95 % Relative Humidity, Non-Condensing
Enclosure
- NEMA 1
Dimensions
- 6.52” high x 2.7” wide x 2.48” deep
Agency Approvals
- UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, Class 4813 02
