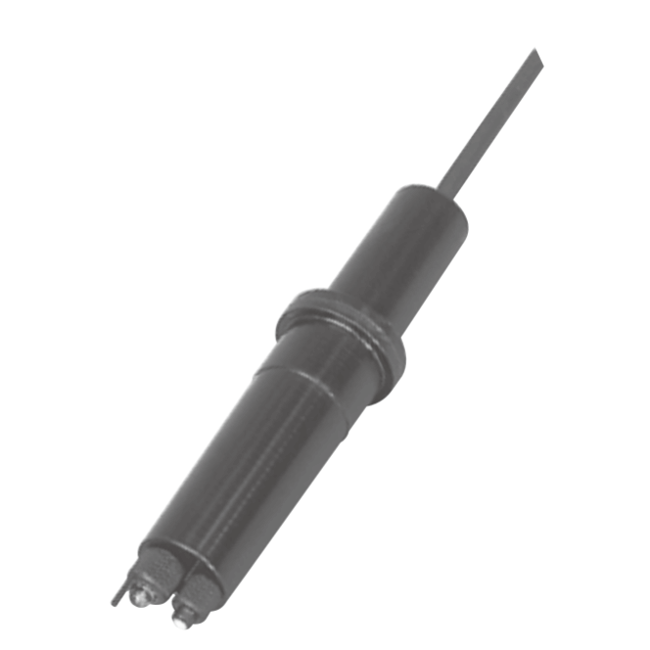

Yokogawa KCI Refillable Type pH Sensor, PH8ERP

PH8ERP KCI Refillable Type pH Sensor

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

Yokogawa’s process pH PH8ERP meters are highly reliable and feature advanced functions which are useful for a wide variety of applications including water quality management in a broad range of production processes and medium-sized wastewater treatment plants, or for general pH and ORP control systems.

Based on Yokogawa’s track record and years of experience, a comprehensive range of products has been produced to provide solutions best suited to individual applications.
Features
  • With the body made of Ryton, a strong engineering plastic, which is comparable to Fluoropolymer(PTFE) in terms of corrosion resistance and heat resistance, it allows for a wide range of applications.

  • A single type of sensor can support all applications regardless of whether a holder or cleaner is used.

  • The integrated-sensor design simplifies calibration with standard solutions and maintenance.

  • The pH glass electrode of a pH sensor, the platinum or gold electrode of a ORP sensor and junction can be individually replaced.

    • Specifications

    Brand

    Ambient Temperature Range

    • 40° to 60° C (104° to 140° F)

    Applications

    • General-purpose

    Approvals & Certifications

    • CSA CAN/CSA C22.2 No. 60079-11: 14, CAN/CSA C22.2 No. 60079-0: 11
    • GB 3836.4-2010

    Cable Length

    • 9.84 to 65.61 ft (3 to 20 metres)

    Cable Material

    • Chlorinated Polyethylene Rubber - Cable Sheath

    Enclosure, Body Material

    • Ceramic
    • Fluororubber (FKM)
    • Glass
    • Hastelloy C
    • Perfluoroelastomer - FFKM
    • Ryton (PPS Resin)
    • Titanium

    Materials of Construction

    • Polypropylene - for Holder Material Guide Pipe, Submersion, Float
    • PVC - for Holder Material Guide Pipe
    • Stainless Steel - for Suspension, Float, Flow-through

    Measuring Range

    • pH: 2 to 12 pH

    Pressure Range

    • psi: 0 to 7.25 (kPa: 0 to 50, bar: 0 to 0.5) - Atmospheric Pressure

    Principle of Operation

    • Glass Electrode Method - Measurement Principle

    Process Temperature

    • -5° to 50° C (23° to 122° F) - for Float, Guide-Pipe
    • -5° to 80° C (23° to 176° F) - for Guide Pipe, Submersion, Flow-through, Suspension

    RTD Type

    • Pt1000 - Temperature Compensation Sensor

    • General-purpose

    Documentation

    Data Sheets

    Product Manuals

    Brochure

    Product Drawing

    Specification

    Technical Information
