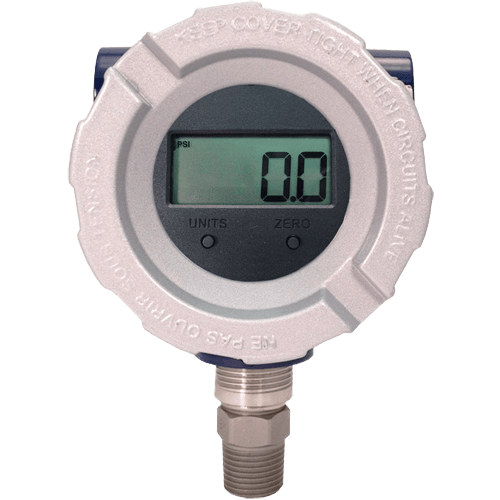

AST46DS Pressure Transducer
Brand: American Sensor Technologies IncAST46DS explosion proof pressure transducers features the latest advances in transducer technology.
With a power supply as low as an 8 Vdc and low current consumption, the AST46DS can operate in remote areas with minimal power. The re-zeroing function, allows for field calibration in a safe environment to further enhance well site or system readings.
Pressure ranges are available up to 20,000 psi; these explosion-proof pressure transducers and transmitters are designed for all common oil and gas pressures from shallow to deep wells.
Features- Low Current Consumption Voltage Output
- Re-zero Push-button Functionality
- Display Pressure Units or Output Signal
- Accurate, Repeatable Sensor Technology
- Rugged Design Withstands Harsh Outdoor Environments
- Available in Exotic Alloys
- High Quality, NEMA 4X Case and Finish Withstands Salt Spray and Outdoor Environments
Specifications
Accuracy
- < ± 0.25 % BFSL at 25° C (77° F): Accuracy Includes Non-Linearity, Hysteresis & Non-Repeatability
Applications
- Compressor Systems & Stations
- Offshore Platforms, Pipelines
- Oil & Gas Pressure Monitoring
- Pipeline Instrumentation
- Power Generation Equipment
- SCADA Systems
- Test Systems
- Wellhead Systems
Approvals & Certifications
- CSA Class I & II, Div. 1 & 2, Class III, Div. 1 & 2
- ISO 9001: 2008
Bandwidth
- (-3 dB), DC to 1 kHz at 4-20 mA & 1-5 Vdc Output - Current Consumption
Burst Pressure
- 5 x Rated Pressure or psi: 45,000 (kPa: 310,300, bar: 3,103) whichever is less at 25° C (77° F)
Conduit Connection
- 1/2" NPT Female - Standard
Cone & Thread Connection
- Autoclave F-250-C Female
Current
- 25 mA, Typical at 4-20 mA & 1-5 Vdc Output - Current Consumption
Environmental Protection
- Explosion-proof: Class I & II, Div. 1, Groups A, B, C, D, E, F, G
- NEMA 4X
- Non-Incendive: Class I & II, Div. 2 Groups A, B, C, D, E, F, G
Excitation Voltage
- 8-28 Vdc
Media
- Gas
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Female
- 1/4" NPT Male
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- 1-5 Vdc
- 4-20 mA
Output Impedence
- 10 kΩ at 4-20 mA Output
Output Load
- 0-800 ohms at 10-28 Vdc
- 5,000 ohms, Min. at 1-5 Vdc Output
Output Noise
- < 2 mV RMS at 1-5 Vdc Output
Pressure Cycles
- > 100 Million at 25° C (77° F)
Pressure Type
- Gauge
Reverse Polarity Protection
- Yes
RFI/EMI Protection
- Yes
Sensor, Probe Material
- 316L Stainless Steel
- 630 Stainless Steel
Shock
- 100 G, 11 ms, 1/2 Sine
Span Effect
- < ± 1 % of Full Scale at 4-20 mA & 1-5 Vdc Output - Span Tolerance
Stability
- ± 0.25 % of Full Scale at 25° C (77° F)
Storage Temperature
- -55° to 105° C (-67° to 221° F)
Temperature Range
- 0° to 55° C (32° to 130° F) - Compensated Range
- -30° to 80° C (-22° to 176° F) - Display Operating
Vibration
- 10 G Peak, 20 to 2000 Hz
Zero Offset
- < ± 0.5 % of Full Scale at 4-20 mA & 1-5 Vdc Output
