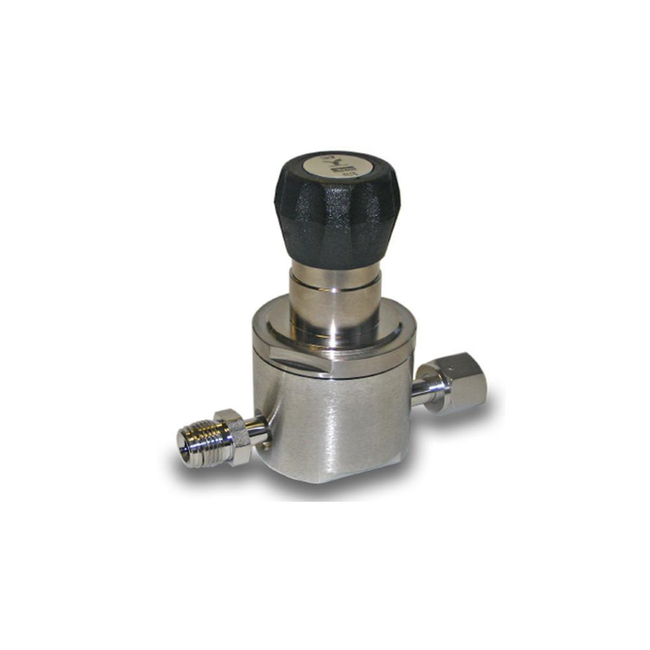

UHP Single Stage, Pressure Regulator, High Flow - HF1200W & HFT1200W Series
Brand: Parker HannifinThe HF1200W & HFT1200W Series regulator is designed for UHP gas delivery and offers high flow capability with an inlet pressure up to 1,250 psig.
The combined high flow and high inlet pressure increases the application range of the regulator.
Specifications
Brand
Body Material
- 316L Stainless Steel
Burst Pressure
- 3,750 psig (259 barg)
Cap Material
- Nickel-Plated Brass
Diaphragm Material
- Hastelloy C-22
External Leak Rate
- < 1 x 10-9 Scc/sec He (Inboard Test Method)
Flow Capacity (Cv)
- Cv 1.2
Internal Leak Rate
- Bubble Tight at 70 psig Min.
Knob Material
- ABS (Black)
Maximum Inlet Pressure (psi)
- 1,250 psig (86 barg)
Maximum Working Temperature (°C)
- 66° C (PCTFE)
Maximum Working Temperature (°F)
- 150° F PCTFE
Minimum Working Temperature (°C)
- -40° C (PCTFE)
Minimum Working Temperature (°F)
- -40° F (PCTFE)
Nut Material
- 17-4 PH
Outlet Pressure
- 5-50 psig (3 barg)5-100 psig (7 barg)5-150 psig (10 barg)20-200 psig (14 barg)
Poppet Material
- 316L Stainless Steel
Poppet Spring Material
- 316L Stainless Steel
Proof Pressure
- 1,875 psig (129 barg)
Seat Material
- PCTFE (Standard), Vespel
Seat Retainer Material
- 316L Stainless Steel
Supply Pressure Effect
- 5.4 psig / 100 psig
Surface Finish (Ra)
- 10 Micro inches Ra
Weight (kg)
- 1.9
Weight (Lbs)
- 4.2
