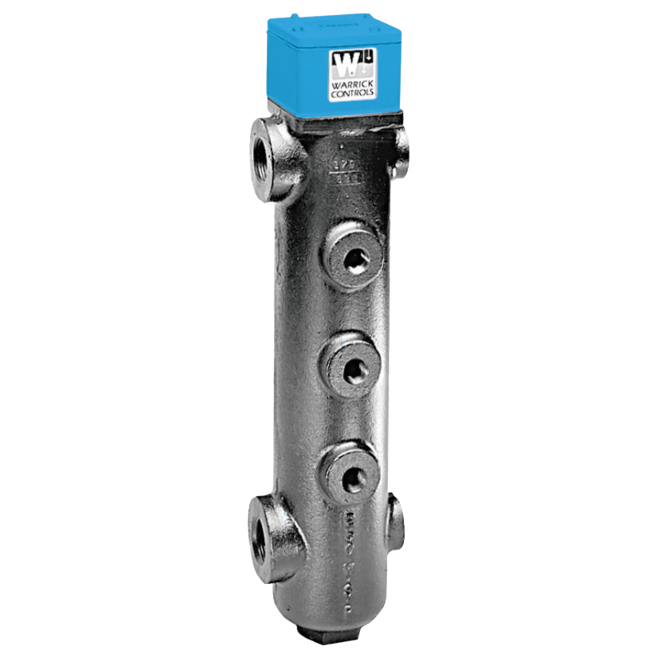

Warrick Series 3K Long External Mount Side Chamber
Brand: Gems Sensors, IncSeries 3K fittings contain up to 4 probes and accommodate probes from 1-3/4˝ to 13˝ in length.
Additional tappings are available for tricocks and gauges.
Features- Side mounting
- Gauge tappings
- Tricock tappings
- 1 to 4 probes
- Pressure tight
- Cast iron and brass
- CSA approved
- U.L. recognized
- FM approved
Specifications
Brand
Approvals & Certifications
- CSA
- FM
- UL: File MP2489, Volume 1, Section 2
Enclosure, Body Material
- Cast Iron
NPT Connection
- 1" NPT Female
- 1/2" NPT Female
- 1-1/4" NPT Female
- 3/4" NPT Female
Pressure Range
- psig: 0 to 250 (kPa: 0 to 1,724, bar: 0 to 17.24)
Sensor / Probe Length
- 1-3/4" to 13" (4.45 to 33.02 cm)
Sensor / Probe Material
- 316 Stainless Steel
- Teflon
Temperature Range
- Saturated Steam: 0° to 200° C (32° to 406° F)
Wetted Materials
- 316 Stainless Steel
- Teflon
- Boilers
- Hydropneumatic Tanks
- Steam Generators
- Pressure Vessels
- Pump Operation
- Low Water / High Water Alarm
