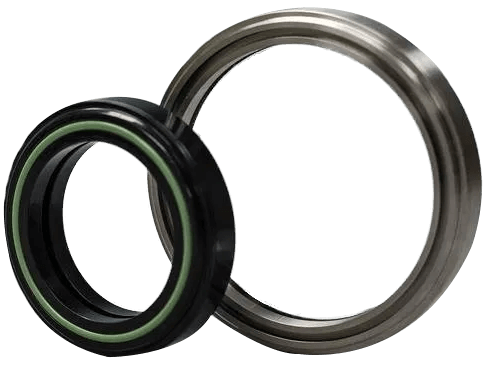

Del Seal 2 Orifice Plate Seal Ring
Brand: Precision FlowDel Seal 2 is an innovative and new design in seal ring technology. It is a seal ring that provides superior performance and durability compared to Teflon and traditional seal ring materials.
It reduces gas permeation and promotes higher dimensional stability for gas measurement equipment. With its unique O-ring design, it performs in harsh environments where other elastomers fail.
It is a fully machined product, rather than a molded seal. It comes standard with Viton- or peroxide-cured Buna O-rings and can be easily changed (if needed) with standard O-ring sizes.
Other elastomers can be used based on service requirements. This simple snap together design allows for quick and easy orifice plate changes.
Specifications
Brand
Specific Gravity
- 1.14 - 1.15
Tensile Strength
- 9,500 - 11,000 psi
Tensile Elongation
- 45 % - 55 %
Tensile Modulus
- 375,000 - 475,000 psi
Compressive Strength (@ 10% Off Set)
- 12,000 - 14,000 psi
Flexural Strength
- 14,000 - 16,000 psi
Shear Strength
- 8,000 - 9,000 psi
CONT. Service Temperature
- 230° F
INTER. Service Temperature
- 330° F
