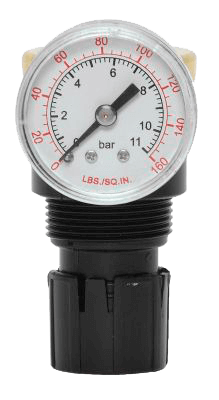

R53MB/R54MB Miniature Brass Body Water Pressure Regulator 1/8" and 1/4"

Brand: Master Pneumatic
Add Product to My Catalog

Features
  • NPTF port threads; optional BSPP threads
  • Pressure gauge.
  • Brass body for corrosion resistance.
  • Non-relieving.
  • Optional large valve seat for water flows up to 6 gallons per minute.
  • Piston-type design (R53MB models) or diaphragm-type (R54MB models).
  • Inline mounting.

Specifications

Brand

Ambient / Media Temperature

  • 40° to 125° F (4° to 52° C)

Enclosure / Body Material

  • Body: Brass

Material of Construction

  • Dome: Nylon
  • Knob: Acetal
  • Main Spring: Stainless Steel

Media

  • Water

Inlet Pressure

  • 300 psig (21 bar) Max.

Outlet Pressure

  • Adjustable Up to 100 psig (7 bar)

Pressure Gauge

  • 0 to 160 psig (11 bar), 1/8 NPT Gauge Ports Front & Rear

Mounting

  • 1=3/16 inch (30 mm) Hole Panel Mounting

Seal Material

  • Nitrile

Documentation

Manuals

Product Brochures
