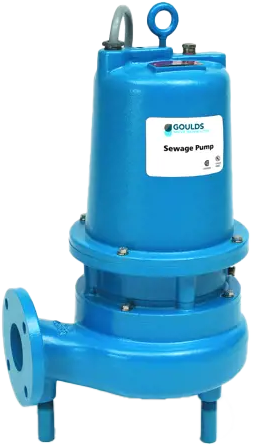

3888D3 – WS D3 Series Sewage Pumps
Brand: Goulds Water Technology
Features
- Cast Iron, two vane semi-iron, non-clog impeller with pump-out vanes for mechanical seal protection.
- Heavy Duty cast iron, volute type casing for maximum efficiency.
- 2.5″ Solids Handling Capabilities.
- Designed for Continuous Operation.
Specifications
Brand
Maximum solid size
- 2.5"
Discharge size
- 3", 125 # ANSI flange
Maximum capacity
- 470 GPM
Maximum total head
- 65 ft
Maximum ambient temperature
- 104° F (40° C) continuous duty
- 140° F (60° C) intermittent duty
Insulation
- Class F
Single Phase
- 1.5 - 5 HP; 208 and 230 volts
- Built-in thermal overloads with automatic reset
- Built-in capacitors
Three Phase
- 1.5 - 5 HP; 200, 230, 460 and 575 volts
- Class 10 overload protection must be provided in control panel
- Sewage Systems
- Flood and Pollution Control
- Dewatering Effluent
- Farms; Hospitals
- Trailer Courts
- Motels
