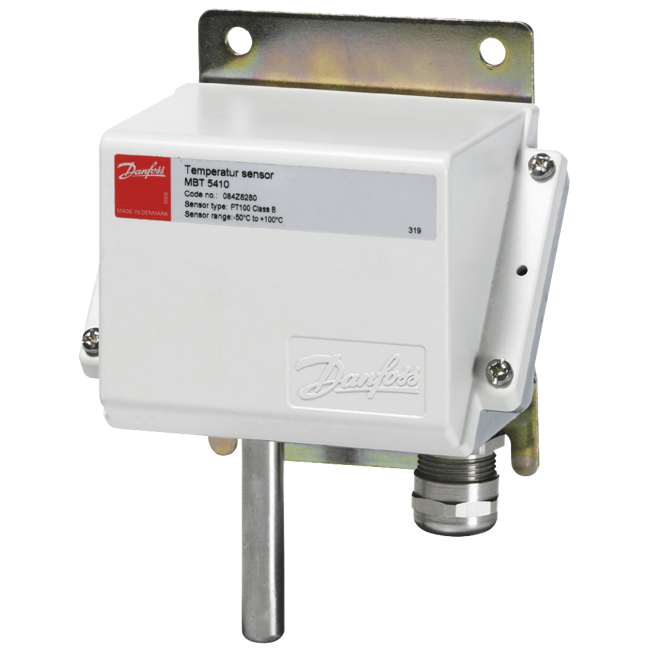

MBT 5410 Temperature Sensor and Temperature Transmitter
Brand: DanfossThe MBT 5410 is a heavy-duty temperature sensor that can be used for controlling freezing installations and room temperature within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. If needed a transmitter (MBT 9110) can be ordered as an integrated part of the sensor.
Features- For measuring temperature in marine and industrial refrigeration, freezing installations
- Temperature range: From -50° to 70° C
- High measuring accuracy
- Robust construction with resistance to shock and vibration
- Available with built-in transmitte
Specifications
Brand
Ambient Temperature Range
- -40° to 70° C (-40° to 158° F) [Brief inch, Max.
- -50° to 70° C (-58° to 158° F) [Brief inch, Max.
Approvals & Certifications
- ABS - American Bureau Shipping
- BV
- CCS
- DNV
- GL
- KRS
- LRS
- NKK
- RINA
Cable Entry
- PG13.5
Connection Material
- KPS with Metal Lid
- KPS with Plastic Lid
Electrical Connectors
- 2-Wire 3-Terminals
- 3-Wire
- 4-Wire
Environmental Protection
- IP67 According to IEC 60529
Insertion 'U' Length
- 2.36" (60 mm)
- 3.93" (100 mm)
Response Time
- Indicative Response Time: 150 to 450 seconds for Air 1 m/sec
Sensor / Probe Material
- 316Ti Stainless Steel
Sensor / Probe Type
- Pt100
- Pt1000
Shock
- 100 G, 6 ms
Tolerance
- Sensor Tolerance: EN 60751 Class B
Vibration
- Sine Function: 4 G at 2 to 100 Hz (IEC 60068-2-6)
