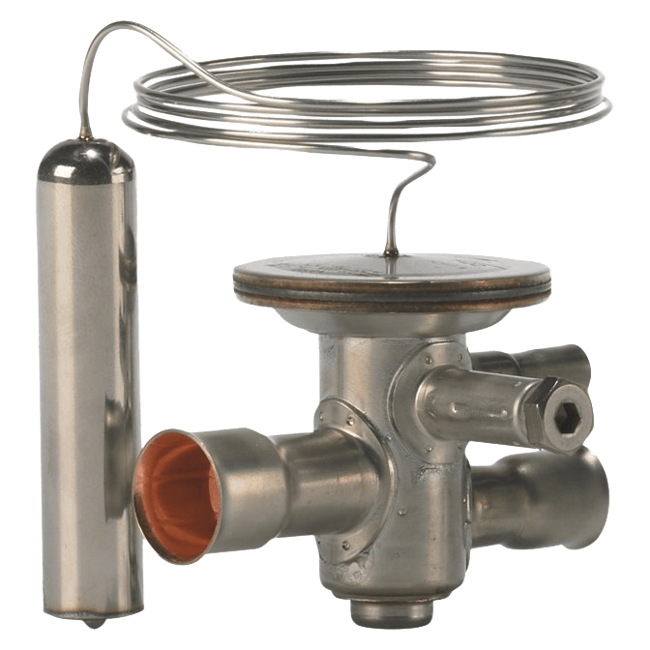

TCBE Thermostatic Expansion Valve
Brand: DanfossThe TC thermostatic expansion valve has been developed and designed for soldering into hermetic refrigeration systems.
It is manufactured in stainless steel and is therefore very suitable for installation in refrigeration systems for the food industry.
Features- Bimetal connections: Straightforward and fast soldering (no wet cloth or cooling pliers required)
- Refrigerants R134a, R404A, R507, R407C, R22, R410A and future refrigerants
- Capacities from 23 to 34 kW (6.5 to 9.8 TR) for R410A
- Stable regulation
- Biflow function (orifice 1 and 2)
- Compact design: Small dimensions and low weight
- Stainless steel, hermetically tight solder version
- High connection strength
- High corrosion resistance
- Capillary tube joints of high strength and vibration resistance
Specifications
Brand
Bulb Material
- Stainless Steel
Capacity
- 12 to 34 kW
Capillary Length
- 3 ft (0.9 m)
Diaphragm Material
- Stainless Steel
Operating Pressure
- Maximum
Operating Temperature
- Maximum
- Short-Lived Peak: 150° C (302° F)
Proof Pressure
- Maximum
Temperature Range
- -40° to 25° C (-40° to 77° F)
Tube Inlet
- 1/2" Tube
- 3/8" Tube
Tube Outlet
- 5/8" Tube
TC can be used in many different forms of refrigeration system, in particular:
- Mobile refrigeration equipment
- Air conditioning units
- Heat pump systems
- Refrigeration appliances
- Liquid coolers
- Ice cube machines
- Traditional refrigeration systems
