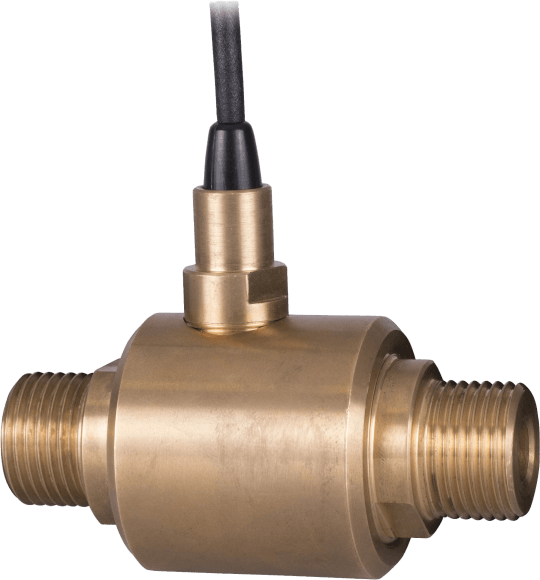

Brass Flowmeter
Brand: Equflow BVThe brass flow sensor of Equflow has low flow sensing capabilities in a wide range of applications suitable for neutral, aqueous and opaque liquids including fuel.
An ultra light-weight turbine rotor follows the fluctuation of the flow very accurately and generates a high resolution infrared-reflected digital output signal.
In either flow controlled or monitoring applications, the brass flow sensor can measure flow rates and totalize.
The Brass flowmeter is designed for long term use with a robust housing.
Features- Infrared (IR) turbine rotor reflection results in accurate and repeatable flow measurements
- High chemical resistance
- High resolution square wave output
- Wetted parts made out of PVDF, brass, ruby bearing, and FPM (Viton®) sealing
- Outstanding performance in fuel measurement applications
Specifications
Brand
Inner Diameter
- 4.5 Low Flow: 4.6 mm
- 4.5: 4.6 mm
- 8.5: 9.3 mm
Linear Flow Range
- 4.5 Low Flow: 0.07 - 1.0 L/min
- 4.5: 0.1 - 2.0 L/min
- 8.5: 1.0 - 20.0 L/min
Minimum Flow
- 4.5 Low Flow: 0.02 L/min
- 4.5: 0.03 L/min
- 8.5: 0.5 L/min
Accuracy
- 1 % of Reading
Repeatability
- < 0.15 %
Wetted Parts
- Brass / PVDF / Ruby
O-ring Seals
- Viton or EPDM
Tube Connection
- 4.5 Low Flow: 1/4" BSP/NPT
- 4.5: 1/4" BSP/NPT
- 8.5: 3/8" BSP/NPT or 1/2" BSP
Tube Length
- 4.5 Low Flow: 73 mm
- 4.5: 73 mm
- 8.5: 74 mm
Liquid Temperature
- -20° to +80° C
Maximum Pressure
- 4.5 Low Flow: 100 bar
- 4.5: 100 bar
- 8.5: 200 bar
Viscosity
- 0.8 - 10 cSt
Average K-factor
- 4.5 Low Flow: 130,000 pulses/L
- 4.5: 100,000 pulses/L
- 8.5: 4,800 pulses/L
Power Supply
- 5-24 Vdc
Output Signal
- 5-24 V square wave
Power Consumption
- 34 mA at 5 V
Default Cable
- PVC 1 m
