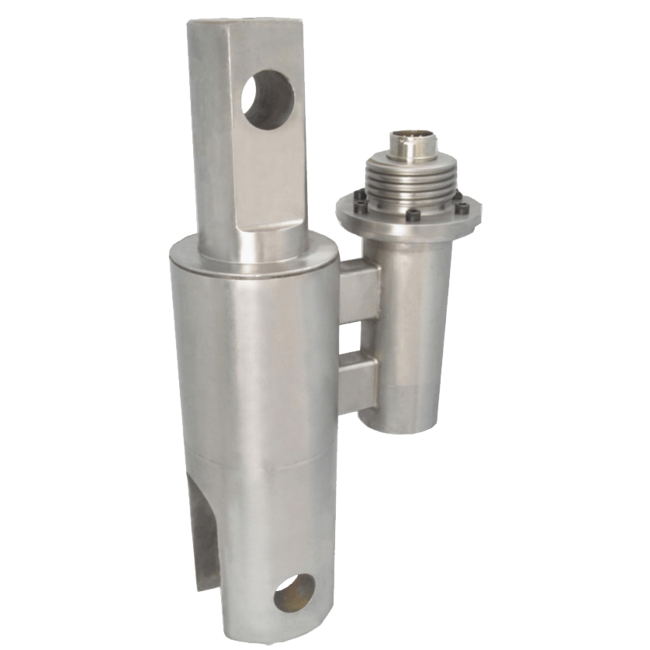

Model XLRW Wireline Load Cell
Brand: TecsisThis heavy duty in-line load cell covers ranges to 40,000 lbs.
Commonly used in land based and offshore oil and gas applications to monitor wireline and slickline tension during well intervention, logging, and tool retrieval, or for mast and hook weight.
Features- Ranges to 0 to 40,000 lbs
- All-welded stainless steel
- Field-replaceable amp
- Integral tongue and yoke shackle Analog or digital output
Specifications
Brand
Accuracy
- ± 0.5 % of FSO
Applications
- Offshore Oil & Gas Industry
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Compensated Temperature
- -29° to 60° C (-20° to 140° F)
Enclosure, Body Material
- Stainless Steel
Hysteresis
- ± 0.2 % of FSO
Linearity
- ± 0.2 % of FSO
Operating Temperature
- -54° to 121° C (-65° to 250° F)
Output
- FSO: 1.5 Vdc
Resistance
- Bridge Resistance: 350 ohms
Span & Zero Effect
- Span Effect: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of Full Scale/°F
Supply Voltage
- ± 15 Vdc
Zero Balance
- ± 1 % of FSO
