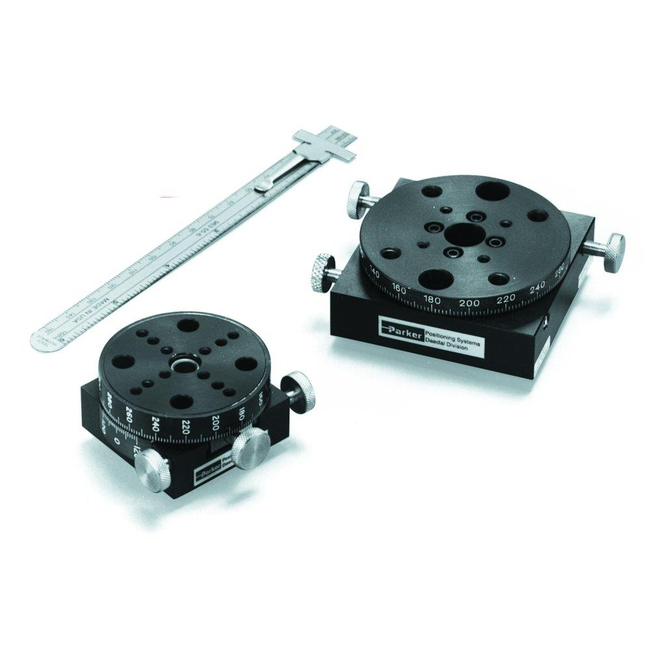

Tangent Arm Driven Manual Rotary Stages - 2500 Series
Brand: Parker HannifinThe 2500-series of tangent arm driven manual rotary stages offer low friction rotary positioning, precise angular adjustment at any position and position locking.
Available with optional dial or vernier, they are suitable for payloads of up to 10 lbs.
Specifications
Brand
Axis Count
- 1
Bearing Type
- Cross Roller
Drive Mechanism
- 12 Arc-min Vernier / No Readout
Mounting Option
- English / Metric
Payload (kg)
- 4.5
Payload (Lbs)
- 10
Product Type
- Rotary Stage
Series
- 2500 Series
Travel Distance (Deg)
- 360° / 10° Fine
Width (inch)
- 1.75 to 2.62
Width (mm)
- 44.4 to 66.5
