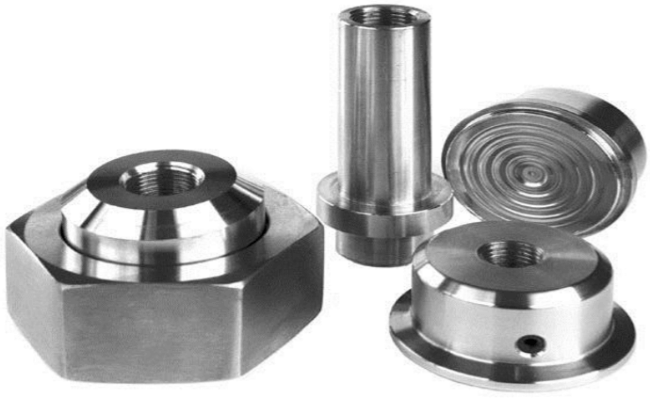

WH Hygienic Diaphragm Seal Gauge
Brand: BudenbergThe WH is a high integrity Diaphragm Seal Gauge designed for applications where cleanliness is paramount, ie Brewing, Pharmaceutical, Food and Beverage industries.
These units are designed to withstand steam cleaning at elevated temperatures and pressures.
- WH-1 ISS /IDF connection including Nut
- WH-T Triclamp/Triclover connection
- WH-D DIN 11851 connection with Nut
Available in a wide range of options including a choice of dial sizes, connections, materials, filling fluids and options to permit operation at temperatures in excess of 440° C.
Specifications
Brand
Tri-Clamp Connection
- 1-1/2" Tri-Clamp
- 1-1/2" Tri-Clover
- 2" Tri-Clamp
- 2" Tri-Clover
- 3" Tri-Clamp
- 3" Tri-Clover
Fill Material
- Syltherm 400
- Syltherm XLT
Approvals & Certifications
- FDA
- PED According to EN 837-1
Tube Connection
- 1" Tube
- 1-1/2" Tube
- 2" Tube
- 3" Tube
Flange Size - 1” (DN 25)
- 1" (DN 25) - Unrated (DIN 11851)
Flange Size - 2” (DN 50)
- 2" (DN 50) - Unrated (RTJ)
Dial Size
- 63 mm, 100 mm & 150 mm
Operating Temperature
- -20° to 400° C
Material of Construction
- 316L Stainless Steel
Pressure Range
- 0-1 bar to 0-40 bar
Accuracy Class
- 1.0 % as EN 837
- Food and Beverage
- Pharmaceutical
