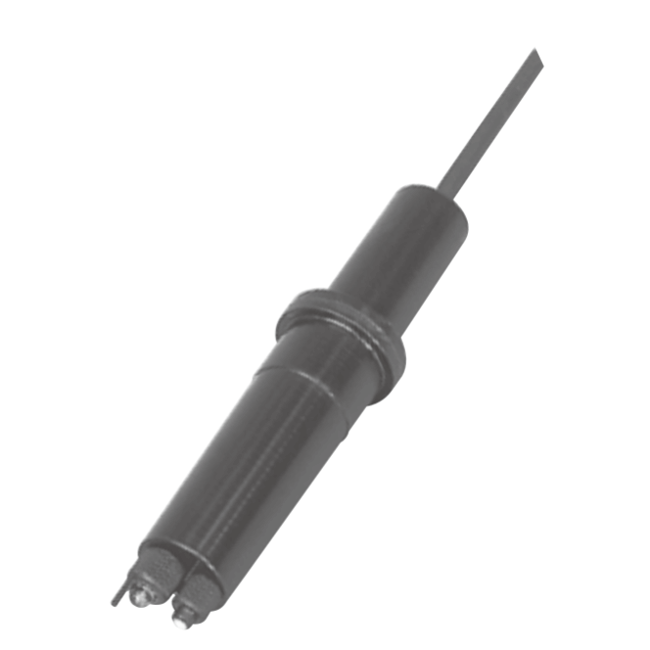

PH8EHP High Purity pH Sensor
Brand: Yokogawa Electric CorporationYokogawa's process pH Analyzers are highly reliable and feature advanced functions which are useful for a wide variety of applications including water quality management in a broad range of production processes and in medium-sized wastewater treatment plants, or as general purpose pH control systems.
Based on Yokogawa's track record and years of experience, a comprehensive range of products has been produced to provide solutions best suited to individual applications.
The PH8EHP pH sensor and PH8HH holder perform reliable measurement of pH for high purity water used in boilers and semiconductor process applications.
Although pH / ORP sensor was used as an analog detector in the past, it became possible to use it as a digital detector (with Variopin connector) by installing the SENCOM Smart Adapter SA11. pH / ORP sensor is a pH detector that compatible to on-site use and various combinations.
Features- The dedicated holder provides solutions to problems that arise when measuring high-purity water.
- Combined with the PH450G and PH202 pH/ORP analyzers, it compensates for the effect of fluid temperature.
- By combining pH and ORP sensor with SENCOM Smart Adapter SA 11, it becomes a digital detector. Yokogawa provides open environment with higher model.
Specifications
Applications
- High Purity Water
Approvals & Certifications
- CAN/CSA C22.2 No. 60079-11: 14, 60079-0: 11
- GB 3836.4-2010
Cable Length
- 9.84 to 65.61 ft (3 to 20 metres)
Cable Material
- Chlorinated Polyethylene Rubber - Cable Sheath
Enclosure, Body Material
- Ceramic
- Fluoro Rubber (FKM)
- Glass
- Hastelloy C
- Ryton (PPS Resin)
- Titanium
Flow Rate
- Measuring Flow Rate: 0 to 700 mL/min
Materials of Construction
- Holder Material - Acryl
Measuring Range
- Measuring Conductivity: 0.1 to 50 µS/cm
- pH: 2 to 12 pH - pH Range
Pressure Range
- psi: 0 to 14.69 (kPa: 0 to 101.3, bar: 0 to 1.013)
Process Temperature
- 0° to 50° C (32° to 122° F)
RTD Type
- Pt1000
Temperature Range
- 0° to 50° C (32° to 122° F) - Measuring Temperature
Wetted Materials
- KCl Tube: Heat-Resistant Soft PVC
- High Purity Water
