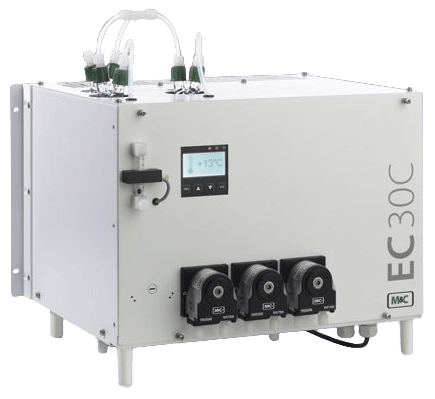

EC-30C Ultra Low Gas Cooler
Brand: M&C TechGroup Germany GmbH
The patented M&C ultra-low cooler EC-30C is used in the gas analysis technique to reduce the dew point of humid sample gases, to provide a stable and very low dew point and reduce aerosol formation in the analyzer.
The cooler EC-30C can be mounted near to the gas sample point to avoid costly energy consuming heated sample lines.
Due to the extremely stable and low gas dew point, there are no water vapour cross-sensitivity and volumetric errors.
Features- Dew point output stability ±0.1°C (±0.18°F)
- 24/7 operation
- Icon-based graphical display for easy and intuitive navigation
- Safe operation guaranteed by self monitoring and pre-warning messages to inform about upcoming maintenance work
- Service-friendly enclosure concept for 19" rack and wall mounting
- Better isolation materials to ensure over all low maintenance
- mA output configurable
- Separate relays for active deep-cooling unit (TKS), alarm and warning messages
- External humidity alarm (optional)
- Internal and external sample gas flow alarm (optional)
- Alarm message history with time stamps for more than 700 entries
- Jet-Stream heat exchangers
Specifications
Ambient Temperature Range
- 5° to 45° C (41° to 113° F)
Approvals & Certifications
- Electrical Equipment Standard: EN 61010
Capacity
- Cooling Capacity: Max.
Consumption
- Power Consumption: 380 VA
Electrical Connectors
- 2.5 mm² (0.0039 In²) Terminals
- Cable Glands PG (1 x 12 mm, 2 x 16 mm, 2 x 20 mm) (1 x 0.47", 2 x 0.63", 2 x 0.79")
- Relay Output Alarm: Common
Electrical Contacts
- Relay Output Alarm: Normally Closed
- Relay Output Alarm: Normally Open
Electrical Rating
- Relay Output Alarm (1 Changeover Contact): 3 A at 230 Vac
- Relay Output Alarm (1 Changeover Contact): 3 A at 24 Vdc
Environmental Protection
- IP20, EN 60529
Flow Rate
- Single Stream, Gas Flow Rate: 90 to 250 NL/hr
Load
- mA-Output: Max.
Materials of Construction
- Material of Sample Contacting Parts: Duran Glass
- Material of Sample Contacting Parts: PTFE
- Material of Sample Contacting Parts: PVDF
Mounting
- 19" Rack-Mounted
- Wall Mounting
Output
- 0-20 mA
- 4-20 mA
- Relay Output Warning, Relay Output Freezer Units I & II: 0.5 at 24 Vac/dc (Unit I On: Closed, Unit II On: Open)
Power Supply
- 115 V, 60 Hz
- 230 V, 50 Hz
Pressure Range
- Gas Pressure: Max.
Response Time
- Start-Up Time: < 60 minutes
Storage Temperature
- -20° to 60° C (-4° to 140° F)
Temperature Range
- -20° to -30° C (-4° to -22° F)
- Incoming Gas Temperature: 41° to 180° C (105.8° to 356° F)
Tube Connection
- Gas Connection: 4/6" Tube
